点击放大查看
929834-01-20-RK
| 制造商 | 3M Company |
| 描述 | Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER 20POS SNGL .100 STR Headers & Wire Housings PNSTRP HDR 929 .235 ST 01TL 20/RW TN PCT |
| 分类 |
商业参数
| 零件号别名 | 07630803394 80001313230 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 1.5 kV | 最大额定电流 | 2.5 A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded, Breakaway | 接触镀层 | Tin Over Nickel |
| 排数 | 1 | 触头材料 | Copper Alloy |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 20 | 位数 | 20 |
| 接触长度 - 配合 | 0.235" (5.97mm) | 接触镀层厚度 | 200µin (5.08µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | 929 | 产品子类型 | Headers |
| 加载位置数 | All | ||
文档与媒体
相关型号
929870-01-20-RA
3m interconnect solutions
Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole .100" Low Profile, Straight, Solder Tails CONN RCPT 20POS STR .100" GOL Headers & Wire Housings 20P BRD MNT SKT GOLD 1 ROW 10MICRO AU

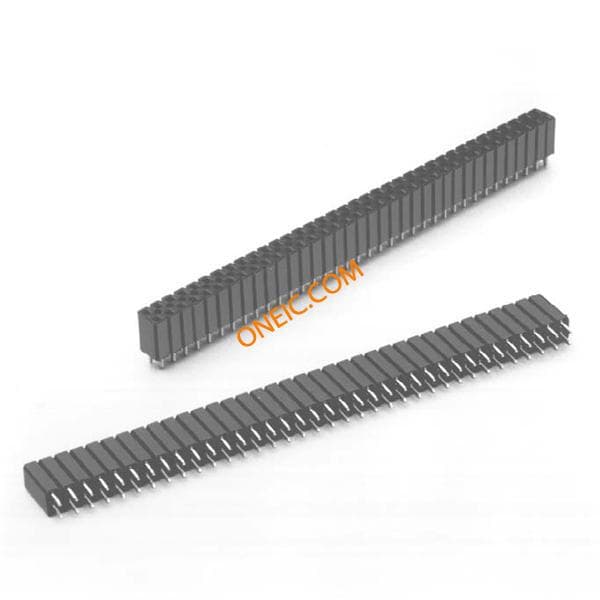

929850-01-20-RB
