点击放大查看

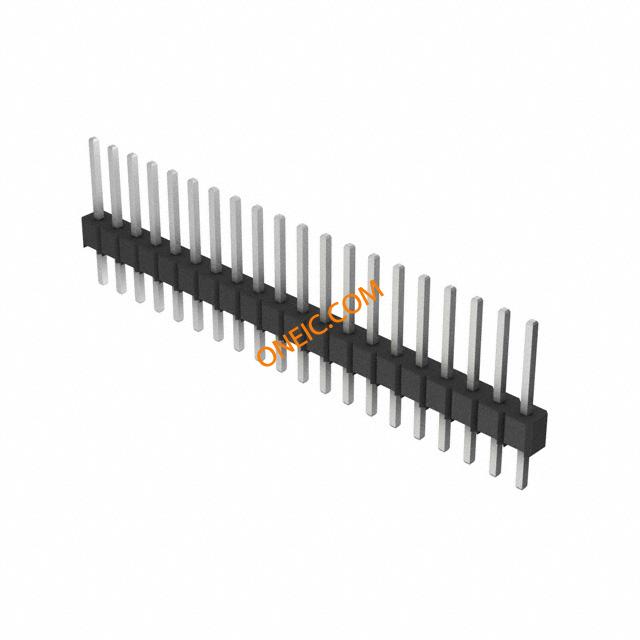

929400-01-20
| 制造商 | 3M Company |
| 描述 | Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole .100", .295" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER .100 SNGL STR 20POS Headers & Wire Housings .100/.295 20 PIN HDR STR |
| 分类 |
商业参数
| 零件号别名 | 07630803458 80001313875 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded, Breakable | 接触镀层 | Tin-Lead Over Nickel |
| 排数 | 1 | 端接样式 | Through Hole |
| 触点数 | 20 | 位数 | 20 |
| 接触长度 - 配合 | 0.295" (7.49mm) | 接触镀层厚度 | 100µin (2.54µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | 929 | 产品子类型 | Headers |
| 加载位置数 | All | ||
