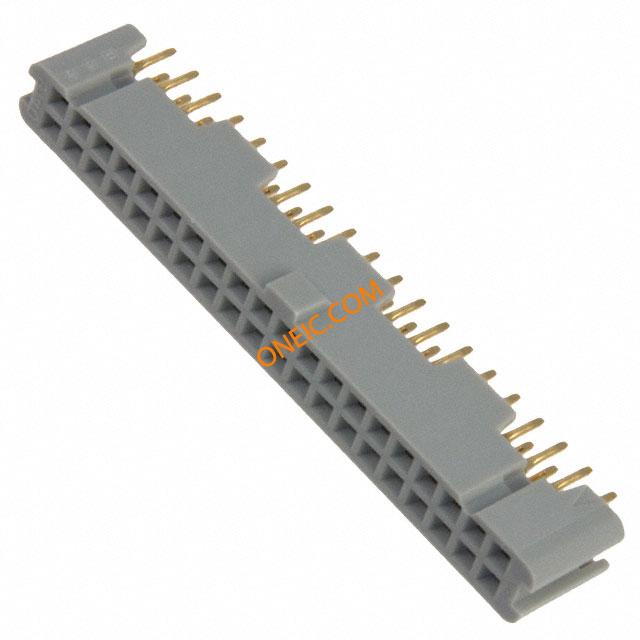

9140-4500PL
| 制造商 | 3M Company |
| 描述 | Conn Board to Board SKT 40 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Centerbump Polarization with Straight Solder Tails, 20 - 64 contacts CONN SOCKET 40POS .100" STR GOLD Headers & Wire Housings 40P STRT PLRZD SKT SOCKET, PCB, 40WAY PolarizedBoardmountSocket(40pos).100centerlinestraightsoldertails |
| 分类 |
商业参数
| 零件号别名 | 05111173228 JE150318861 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 最大额定电流 | :1A | ||
机械参数
| 颜色 | Gray | 间距 | 2.54 mm |
| 重量 | 0.02 | 包装方式 | Bulk |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Female Socket | 引脚间距 | :2.54mm |
| 安装类型 | Through Hole | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | :Copper | 端接样式 | Through Hole |
| 第一触头极性 | Socket (Female) | 触点数 | 40 |
| 接触件端接 | :Through Hole Vertical | 位数 | 40 |
| 接触镀层厚度 | 12µin (0.30µm) | ||
产品信息
| 类型 | Board to Board | 连接器性别 | SKT |
| 系列 | 9100 | 产品特性 | Polarizing Key |
| 产品子类型 | Receptacles / Sockets - PCB | 加载位置数 | All |
环境参数
| 工作温度 | :105°C | ||
