点击放大查看

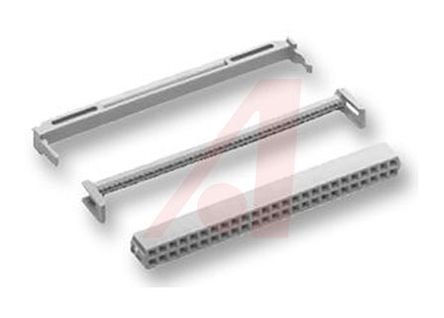

89140-0103
| 制造商 | 3M Company |
| 描述 | 40/SKT/DUAL RECESS CVR/PREASB/CB/S WSR/30AVG .100" Ã .100" Preassembled Wiremount for .050" Pitch Cable CONN SOCKET 40 POS IDC W/STR REL Headers & Wire Housings 40P IDC SOCKET SOCKET, IDC, STRAIN, 40WAY Conn;Rect;Socket;IDCRibbonCable;0.100in;40Cnt;891Ser. 3M 891 系列 2行 40路 2.54mm节距 母 IDC 连接器 , 电缆安装 |
| 分类 |
商业参数
| 零件号别名 | 05400751567 80610657431 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 500 | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366990 |
电气参数
| 量程（°/s） | :3M - 891 Series | 最大额定电流 | 1 A |
机械参数
| 颜色 | Gray | 间距 | 0.100" (2.54mm) |
| 重量 | 9 lbs | 包装方式 | Bulk |
| 导线类型 | Ribbon Cable | 导线线规 | 26-28 AWG |
| 排间距 | 0.100" (2.54mm) | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 安装样式 | Cable |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 触点数 | 40 |
| 接触件端接 | :IDC / IDT | 位数 | 40 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Ribbon Cable | 连接器性别 | :Socket |
| 系列 | 891 | 产品特性 | Feed Through; Polarizing Key, Strain Relief |
| 产品子类型 | Receptacles / Sockets - Housings | ||
文档与媒体
相关型号
N3432-6002RB
3M Electronic Solutions Division
Headers & Wire Housings BOARDMT HDR 40P NO LATCH/EJECTOR .100" Ã .100" Latch/Ejector, Straight and Right Angle PROTECT HEADER STRGT 40 CONTACT 3M 3000 Series 2.54mm Pitch 40 Way 2 Row Straight PCB Header, Solder Termination, 2A Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Header,4-Wall;CopperAlloy;200uin.60/40Tin/Lead;1;Black;0.68in.;40 Pin header DIN 41651 40P, N3432-6002RB, 3M 3M 3000 系列 2.54mm节距 40路 (2排) 直 PCB 针座, 焊接端接, 2A , 通孔
N3432-6603RB
3m interconnect solutions
40/HDR/LL/STR/HT/.155/30AVG/ROHS CONN HEADER 40POS STR GOLD T/H Headers & Wire Housings 40P STRT SOLDER TAIL LATCH/EJECTOR
N3432-L303RB
3m interconnect solutions
Conn Ejector Header HDR 80 POS 2.54mm Solder RA Thru-Hole CONN HEADER STKD 40POS R/A LO
N3432-6003RB
3m interconnect solutions
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 40POS STR NO LATCH Headers & Wire Housings 40P STRT SOLDER TAIL LATCH/EJECTOR 3M(TM)FOUR-WALLHEADER,3000SERIES,N3432-6003RB
3432-6502
3m interconnect solutions
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 40PS STR SHORT LATCH
3432-2303
3m interconnect solutions
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Three-Wall Latch/Ejector, Straight and Right Angle CONN HEADER 40POS STR LONG LATCH

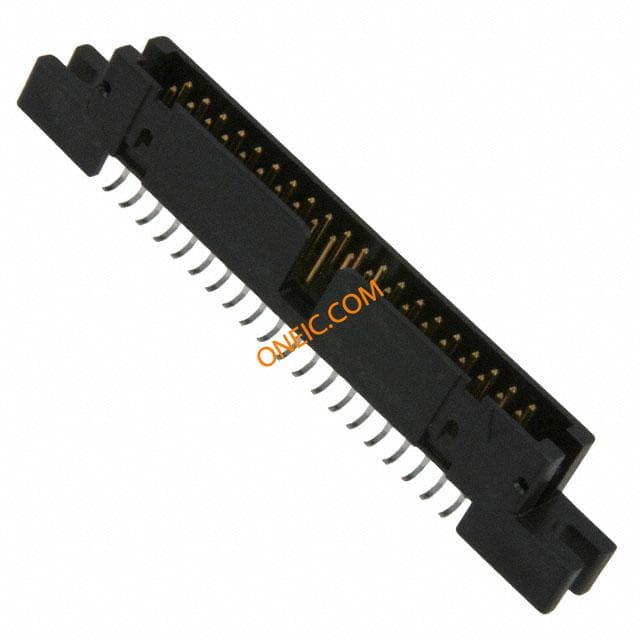

N4640-2000RB
3m interconnect solutions
Conn Ejector Header HDR 40 POS 2.54mm Solder ST SMD 40/HDR/SMT/STR/FLG Headers & Wire Housings 40POS 2.54MMSOLDER HEADER PAK100N4600Series.100SurfacemountHeader40pos/STR/30AVG/ROHS
N3432-650T02RB
3m interconnect solutions
Conn Ejector Header HDR 40 POS 2.54mm Press Fit ST Thru-Hole Headers & Wire Housings BOARDMT HDR 40 POS .100" Ã .100" Latch/Ejector, Straight, Compliant Pin CONN HEADER 40POS STR GOLD T/H
N3432-6502RB
3m interconnect solutions
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 40POS STR GOLD T/H Headers & Wire Housings 40P STRAIGHT

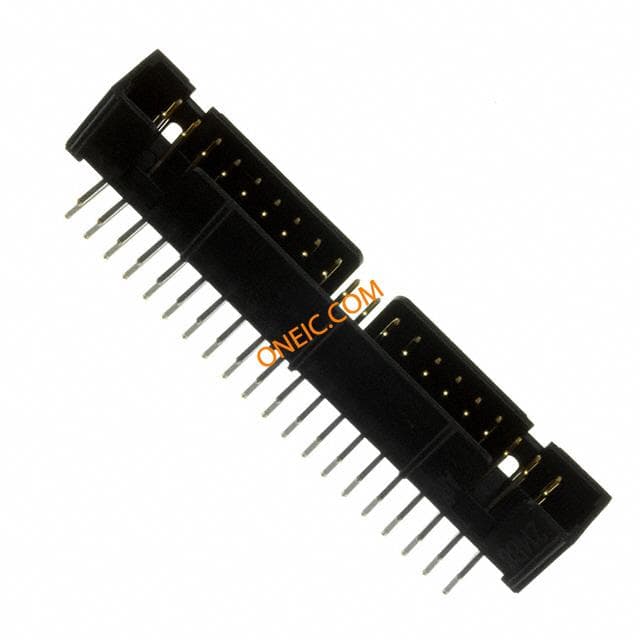

D2540-5002-AR
