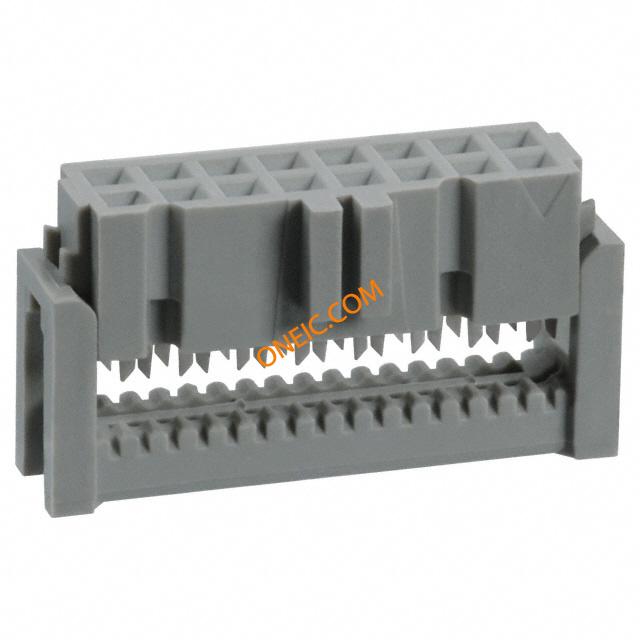

89114-0101
| 制造商 | 3M Company |
| 描述 | Conn IDC Connector SKT 14 POS 2.54mm IDT RA Cable Mount .100" Ã .100" Preassembled Wiremount for .050" Pitch Cable CONN 14 POS IDC SOCKET GOLD POL IDC Ribbon Cable Socket 14 way Headers & Wire Housings 14P IDC SOCKET SOCKET, IDC, 2.54MM, 14WAY IDCSOCKETCONNECTOR;14CONTACTS |
| 分类 |
商业参数
| 零件号别名 | 05400754455 80610706402 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366990 |
| RoHS合规（认证） | Yes | 材料阻燃等级 | UL94V-0 |
电气参数
| 量程（°/s） | :3M - 891 Series | 最大额定电流 | 1.25A |
机械参数
| 颜色 | Gray | 深度 | 6.1 mm |
| 间距 | 2.54 mm | 高度 | 10.7 mm |
| 重量 | 4 lbs | 包装方式 | Bulk |
| 导线类型 | Ribbon Cable | 导线线规 | 26-28 AWG |
| 排间距 | 0.100" (2.54mm) | 端接方式 | IDT |
| 触头类型 | Female Socket | 外壳颜色 | Gray |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Gold Over Nickel |
| 安装样式 | Cable | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | PBT |
| 总长度 | 22.4 mm | 主要材料 | Wiremount |
| 电缆端接方式 | IDC | 插针孔直径 | 0.1" |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 触点数 | 14 | 接触件端接 | :IDC / IDT |
| 介电材料 | PBT | 位数 | 14 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | SKT |
| 系列 | 891 | 已删除 | Compliant |
| 产品特性 | Feed Through, Polarizing Key | 产品子类型 | Receptacles / Sockets - Housings |
环境参数
| 工作温度 | +105°C | ||
