点击放大查看

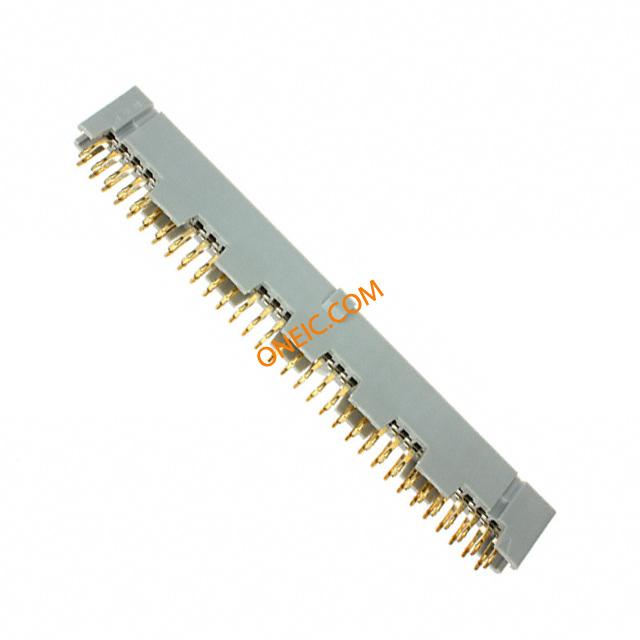

8564-4500PL

制造商	3M Company
描述	Conn Socket Strip SKT 64 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Centerbump Polarization with Straight Solder Tails, 10 - 64 contacts CONN SOCKET PCB VERT 64POS .1" 3M 2.54mm 64 Way 2 Row Straight PCB Socket Through Hole Socket Strip Headers & Wire Housings 64P STRT PLRZD SKT SOCKET, PCB, 64WAY PolarizedBoardmountSocket(64pos).100centerlinestraightsoldertails 3M 8500 系列 2行 64路直 2.54mm节距通孔印刷电路板插座, 插座板
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	05111174439 JE150318812	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	100

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85369010

电气参数

额定电压	1 kV	极数	:64
最大额定电流	1A

机械参数

颜色	Gray	间距	2.54 mm
重量	0.008	包装方式	Bulk
排间距	0.100" (2.54mm)	端接方式	Solder
触头类型	Female Socket	引脚间距	:2.54mm
安装类型	Through Hole	连接器类型	Receptacle
接触镀层	Gold Over Nickel	排数	2
触头材料	Copper Alloy	壳体材料	Polyester
端接样式	Through Hole	第一触头极性	Socket (Female)
触点数	64	接触件端接	:Through Hole Vertical
位数	64	接触镀层厚度	12µin (0.30µm)

产品信息

类型	Socket Strip	连接器性别	SKT
系列	8500	产品特性	Polarizing Key
产品子类型	Receptacles / Sockets - PCB	加载位置数	All

文档与媒体

在线文档

mediawebserver.dyn?6666660Zjcf6lVs6EVs666UCJCOrrrrQ-

PDF 文档

74893.pdf

相关型号

暂无图片

3764-6602UG

3m interconnect solutions

Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 64 PIN STR LONG SNAP-IN .062" CONN HEADER 64POS STR LONG LA Headers & Wire Housings 64 PIN STR LONG SNAP-IN .062

¥29.6480

详情

暂无图片

3764-2603

3m interconnect solutions

Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole CONN HEADER 64POS STR LONG LA

详情

暂无图片

3764-2003

3m interconnect solutions

Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole CONN HEADER 64POS STR NO LATC

¥40.1676

详情

暂无图片

3764-6002UG

3m interconnect solutions

Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole *NCNR CONN HEADER 64POS STR NO LATC

详情

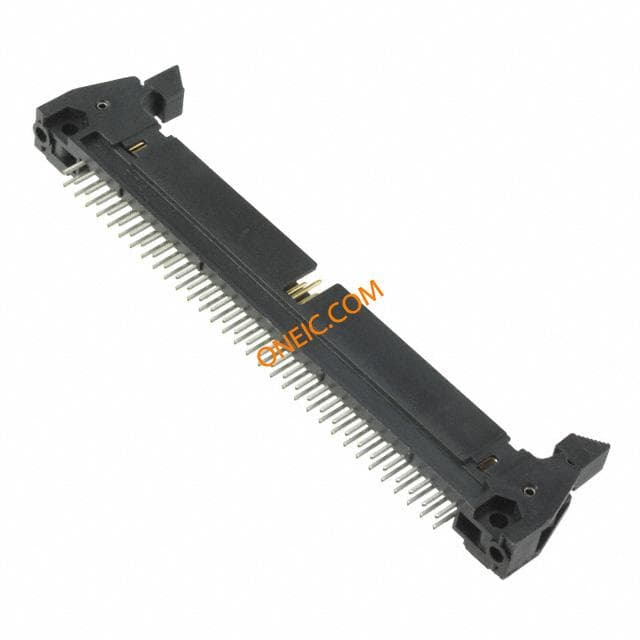

D3764-6202-AR

3m interconnect solutions

Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole CONN HDR 64POS VERT S-LATCH 10AU

¥19.6126

详情

暂无图片

3764-600T02TC

3m interconnect solutions

Conn Ejector Header HDR 64 POS 2.54mm Press Fit ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight, Compliant Pin CONN HEADER 64POS STR NO LATC Headers & Wire Housings 64P 4 WALL HEADER NO EJECTOR

¥72.3520

详情

N3764-2202RB

3m interconnect solutions

Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Three-Wall Latch/Ejector, Straight and Right Angle CONN HEADER 64POS STR GOLD T/H Headers & Wire Housings 3-WALL HDR LTCH/EJCT HI-TM 64P ST SH .062

¥29.7840

详情

暂无图片

D2564-6002-AR

3m interconnect solutions

Conn Shrouded Header HDR 64 POS 2.54mm Solder ST Thru-Hole CONN HEADER 64POS VERT 10GOLD Headers & Wire Housings 64P 4-WALL HEADER STRAIGHT 10U AU

¥8.7720

详情

暂无图片

D2564-6V0C-AR-WH

3m interconnect solutions

Conn Shrouded Header HDR 64 POS 2.54mm Solder ST SMD T/R CONN HEADER 64POS SMD VERT 10AU

¥11.4240

详情

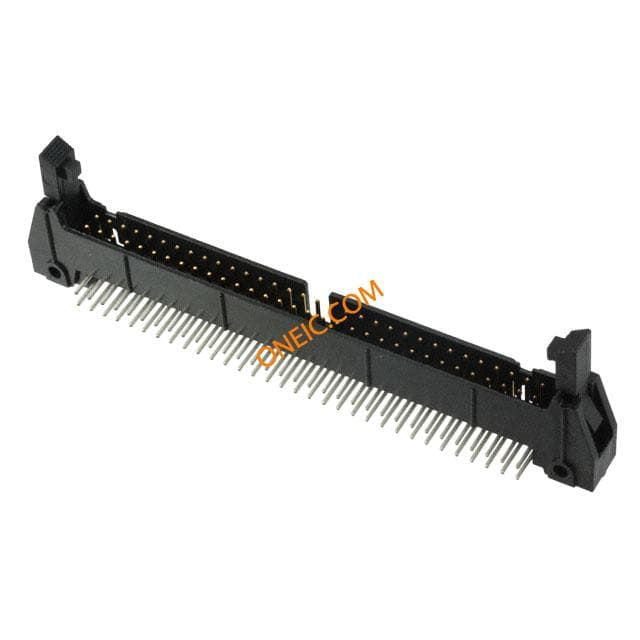

D3764-5302-AR

3m interconnect solutions

Conn Ejector Header HDR 64 POS 2.54mm Solder RA Thru-Hole CONN HEADER 64POS R/A LONG LATCH

¥21.2520

详情

D2564-5002-AR

3m interconnect solutions

Conn Shrouded Header HDR 64 POS 2.54mm Solder RA Thru-Hole CONN HEADER 64POS R/A 10GOLD Headers & Wire Housings 64P 4-WALL HEADER RIGHT ANGLE 10U AU

¥9.7240

详情

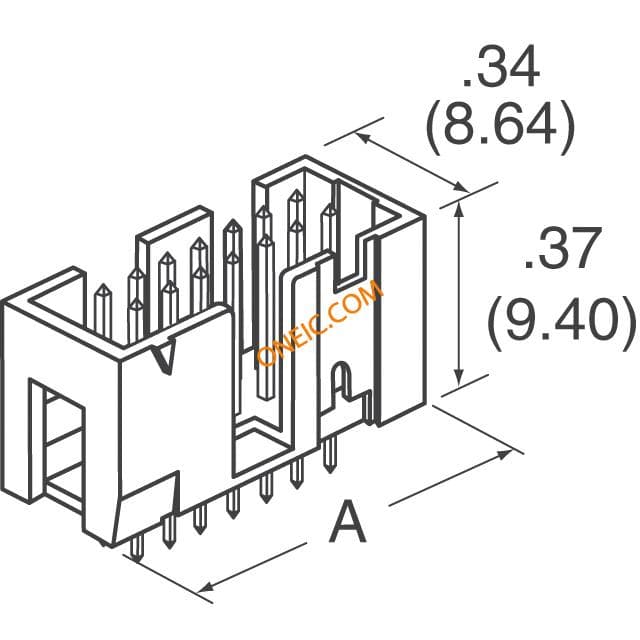

2564-6002UB

3M Electronic Solutions Division

Headers & Wire Housings USE 517-N2564-6002RB .100" Ã .100" Low Profile, SMT Straight, Straight and Rt Angle Through-Hole, 2500 Series CONN HEADER 64POS STR GOLD T/

¥22.7120

详情

暂无图片

3764-6503

3M Electronic Solutions Division

Headers & Wire Housings 64 POS HEADER BOARDMOUNT CONN HEADER 64PS STR SHORT LA

¥45.0908

详情

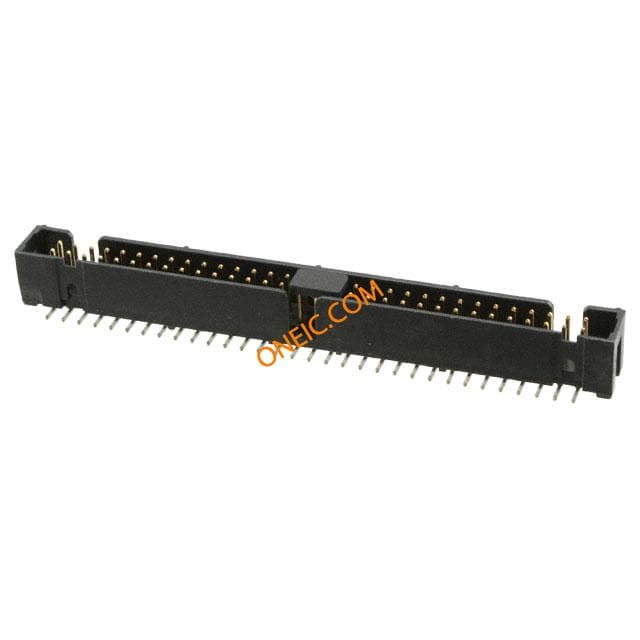

N2564-6V0C-RB-WH
