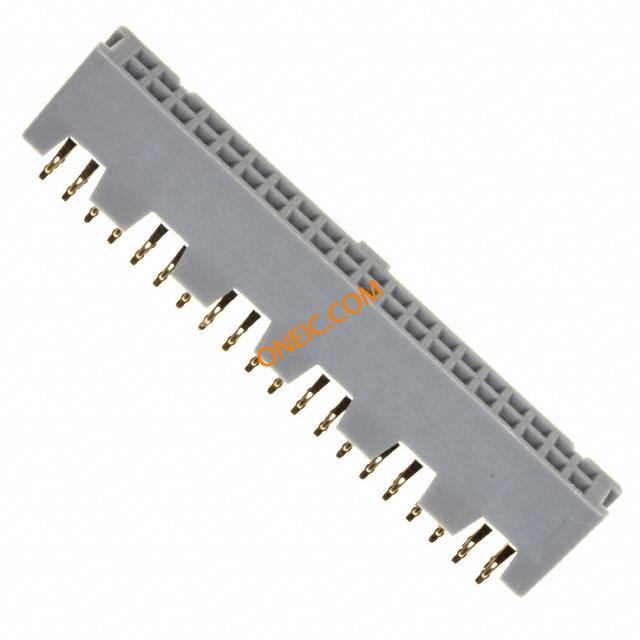

8540-4500PL
| 制造商 | 3M Company |
| 描述 | Conn Socket Strip SKT 40 POS 2.54mm Solder ST Thru-Hole 40P STRAIGHT BM SOCKET .100" Ã .100" Centerbump Polarization with Straight Solder Tails, 10 - 64 contacts CONN SOCKET PCB VERT 40POS .1" 3M 2.54mm 40 Way 2 Row Straight PCB Socket Through Hole Socket Strip Headers & Wire Housings 40P STRT PLRZD SKT SOCKET, PCB, 40WAY PolarizedBoardmountSocket(40pos).100centerlinestraightsoldertails Socket; IDC; female; PIN:40; straight; THT; gold plated; 3A; 2.54mm 3M 8500 系列 2行 40路 直 2.54mm节距 通孔 印刷电路板插座, 插座板 |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 100 |
| 零件号别名 | 54745226291 JE150318788 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | RoHS-conform | 认证机构 | UL E68080 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 1000V | 极数 | :40 |
| 工作电压 | :350V | 最大额定电流 | 1A |
| 绝缘电阻 | :1000Mohm | ||
机械参数
| 颜色 | Gray | 深度 | 7.1 mm |
| 间距 | 2.54 mm | 高度 | 10.8 mm |
| 重量 | 0.008 | 材料（通用） | :Glass Filled Polyester |
| 包装方式 | Bulk | 出线方向 | NO |
| 方向 | STRAIGHT | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | MALE |
| 引脚间距 | :2.54mm | 柱间距 | 2.54mm |
| 外壳颜色 | Gray | 安装类型 | Through Hole |
| 连接器类型 | Receptacle | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | IDC |
| 总长度 | 55.4 mm | 包装数量 | 100 |
| 连接器 - 电缆 | socket | 端接样式 | Through Hole |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :Grey |
| 触点数 | 40 | 接触件端接 | :Through Hole Vertical |
| 位数 | 40 | 接触镀层厚度 | 12µin (0.30µm) |
| 触点材料 - 镀层 | gold plated | 第一连接器安装特征 | 2x20 |
产品信息
| SPG | 100 | 类型 | Socket Strip |
| 连接器性别 | SKT | 系列 | 8500 |
| 产品特性 | Polarizing Key | 极性 | :Bump |
| 匹配码 | 85404500PL | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - PCB | 单元数量 | 1 |
| 标准交期 | 13 weeks | 其他规格 | NO |
| 加载位置数 | All | ||
环境参数
| 插拔次数 | 1 | 工作温度 | -55 TO 105°C |
