点击放大查看

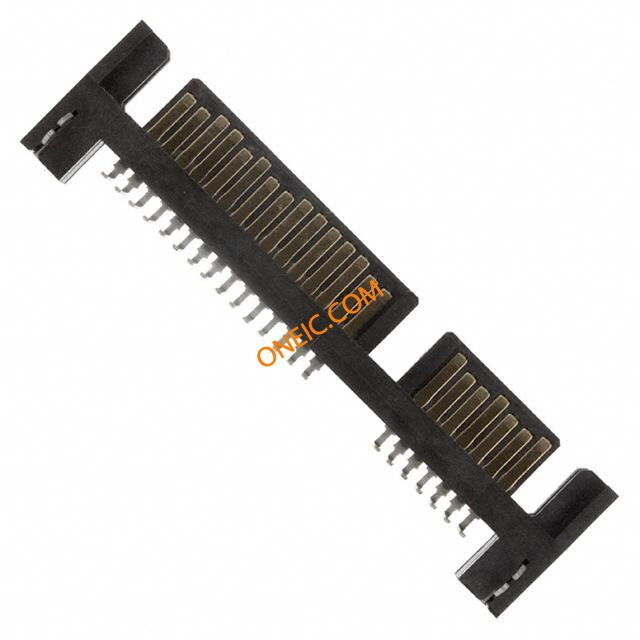

5622-4100-ML
| 制造商 | |
| 描述 | Conn SATA PL 15Power/7Signal POS 1.27mm Solder RA Thru-Hole 22 Terminal 1 Port Device Plug, Straddlemount and Right Angle, Through-Hole CONN PLUG SATA R/A 22PS T/H GOLD 3M 1.27mm 7, 15 Way 1 Row Right Angle PCB Socket Through Hole SATA I/O Connectors 1.27mm 22P PLUG R/A THRU HOLE 30 GLD CONN PLUG,SATA R/A,22PS,T/H 3M 7/15路 直角 1.27mm节距 通孔 印刷电路板插座, SATA |
| 分类 |
商业参数
| 产品 | SATA Connectors | 零件号别名 | 05111174494 XE004225118 |
| 产品类别 | I/O Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366990 |
| RoHS合规（认证） | Yes | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 最大额定电流 | 1.5A | 绝缘电阻 | 1000 MOhms |
机械参数
| 颜色 | Black | 间距 | 1.27 mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 端接方式 | Solder | 安装类型 | Through Hole |
| 连接器类型 | SATA | 接触镀层 | Gold |
| 安装样式 | Through Hole | 排数 | 1 |
| 连接器样式 | Plug | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 端接样式 | Solder Pin |
| 触点数 | 15Power/7Signal | 接触件端接 | :Through Hole Right Angle |
| 位数 | 22 | 接触镀层厚度 | 30µin (0.76µm) |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | SATA | 连接器性别 | PL |
| 系列 | :5622 | 产品特性 | Board Lock |
环境参数
| 工作温度 | - 40 C to + 85 C | ||
相关型号

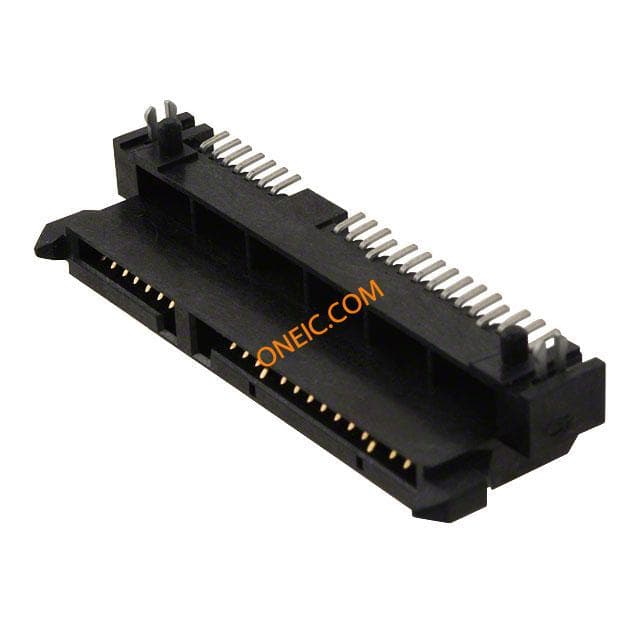

5622-1200-ML
3m interconnect solutions
Conn SATA RCP 15Power/7Signal POS 1.27mm Solder RA SMD 22 Terminal 1 Port 22P SATA CONNECTOR SMT Host Receptacle, Vertical and Right Angle, Std Height, Surfacemount Receptacle CONN RECPT SATA R/A SMT 22POS AU 3M 1.27mm 7, 15 Way 1 Row Right Angle PCB Socket Surface Mount SATA I/O Connectors 1.27mm 22P RCPT R/A SURF MT 30 GOLD 3M 7/15路 直角 1.27mm节距 表面贴装 印刷电路板插座, SATA

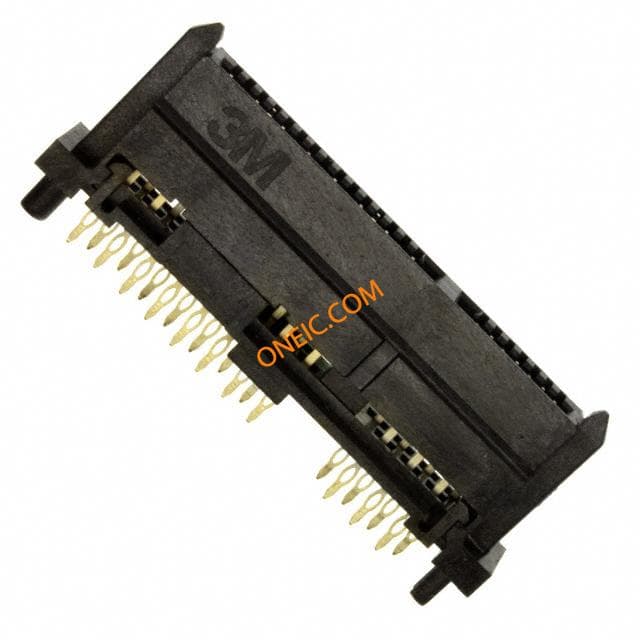

5622-2603-ML
3m interconnect solutions
Conn SATA RCP 15Power/7Signal POS 2.54mm Press Fit ST Thru-Hole 22 Terminal 1 Port Host Receptacle, Vertical, Elevated Pressfit and Through-Hole Receptacle CONN RECPT SATA PRESS-FIT 22POS I/O Connectors 1.27mm 22P RECEPT VERT TH 30u GOLD
5622-4100-ML
3m interconnect solutions
Conn SATA PL 15Power/7Signal POS 1.27mm Solder RA Thru-Hole 22 Terminal 1 Port Device Plug, Straddlemount and Right Angle, Through-Hole CONN PLUG SATA R/A 22PS T/H GOLD 3M 1.27mm 7, 15 Way 1 Row Right Angle PCB Socket Through Hole SATA I/O Connectors 1.27mm 22P PLUG R/A THRU HOLE 30 GLD CONN PLUG,SATA R/A,22PS,T/H 3M 7/15路 直角 1.27mm节距 通孔 印刷电路板插座, SATA

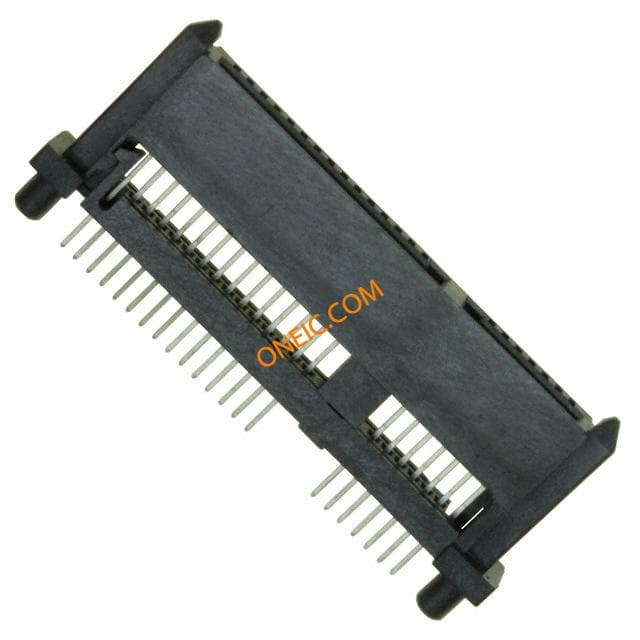

5622-2103-ML
3M Electronic Solutions Division
I/O Connectors 1.27mm 22P RCPT VER THRU HOLE 30 GLD Host Receptacle, Vertical, Elevated Pressfit and Through-Hole Receptacle CONN RECPT SATA VERT PCB 22POS 3M 1.27mm 7, 15 Way 1 Row Straight PCB Socket Through Hole SATA 3M 7/15路 直 1.27mm节距 通孔 印刷电路板插座, SATA

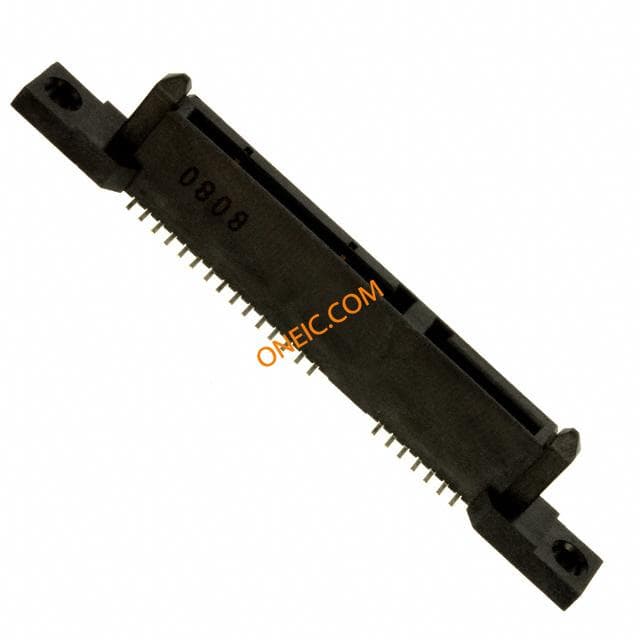

5622-2222-ML
