点击放大查看

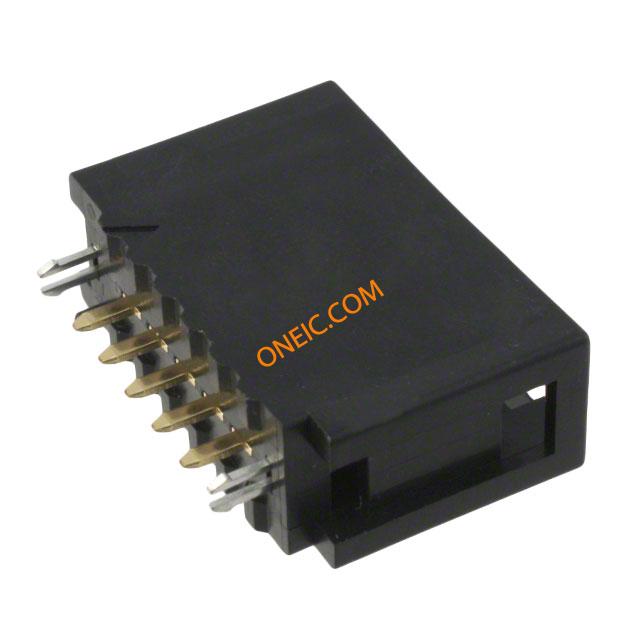

35605-6114-A00PE
| 制造商 | |
| 描述 | Conn Power HDR 5 POS 3mm Solder ST Thru-Hole 5 Terminal 1 Port Headers & Wire Housings 5P 1 ROW HEADER POWER CLAMP CONN HEADER A POL BRDMNT PowerClampHeader,3mmStraight,1Row,Wide |
| 分类 |
商业参数
| 零件号别名 | 54862308590 JE150390506 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 开关功能 | One Touch |
机械参数
| 颜色 | Black | 间距 | 3 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触点形式 | Blade Pin | 触头类型 | Blade Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 排数 | 1 |
| 触头材料 | Copper Alloy | 壳体材料 | Nylon |
| 主要材料 | Rectangular | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 10 |
| 位数 | 5 | 接触镀层厚度 | 20µin (0.51µm) |
| 每排/每行位置数 | All | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | 356 | 产品特性 | Board Lock |
| 主要用途 | Board Lock | 制造商全称 | PowerClamp |
| 产品子类型 | Headers | 输出配置 | Through Hole |
| 加载位置数 | All | ||
