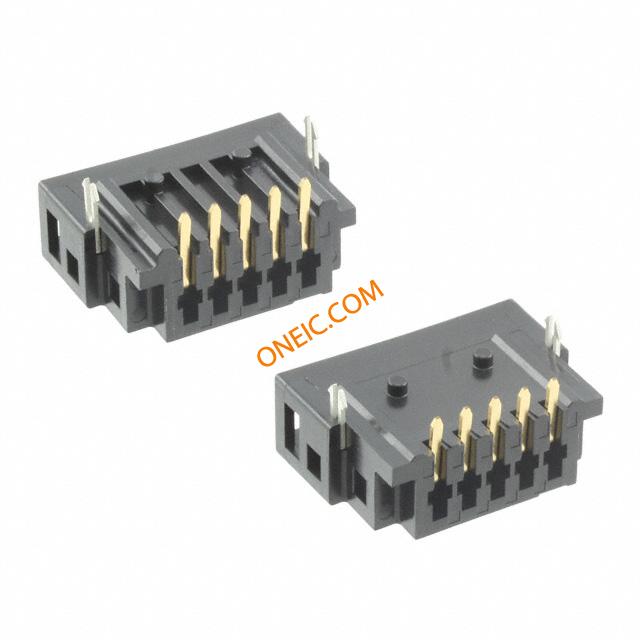

35605-5153-A00PE
| 制造商 | |
| 描述 | Conn Power HDR 5 POS 3mm Solder RA SMD 5 Terminal 1 Port Headers & Wire Housings 5P 1 ROW HEADER POWER CLAMP CONN HEADER .5MM A POL BRDMNT WIRE-BOARD CONNECTOR, HEADER, 5POS, 3MM PowerClampHeader,3mmRightAngle,1Row,.5mmstandoff,Wide |
| 分类 |
商业参数
| 零件号别名 | 54745295883 JE150382677 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366930 |
电气参数
| 量程（°/s） | :3M - Power Clamp 356 Series | 额定电压 | 250 V |
| 开关功能 | One Touch | ||
机械参数
| 颜色 | Black | 间距 | 3 mm |
| 重量 | 0 | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Blade Pin |
| 安装类型 | Surface Mount | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Copper Alloy |
| 壳体材料 | Nylon | 主要材料 | Rectangular |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 5 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 5 | 接触镀层厚度 | 20µin (0.51µm) |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | 356 | 产品特性 | Board Lock |
| 制造商全称 | PowerClamp | 产品子类型 | Headers - Shrouded |
| 加载位置数 | All | ||
