点击放大查看

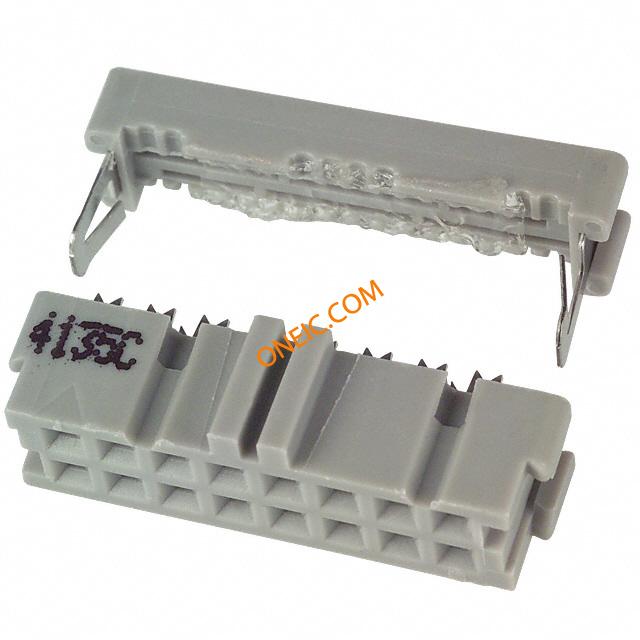

3452-7600

制造商	3M Company
描述	Conn IDC Connector SKT 16 POS 2.54mm IDT RA Cable Mount .100" Ã .100" Wiremount for .050" Pitch Cable SOCKET CONN 16 CONT CLOSED W/POL Socket; Glass Filled Polyester; Copper Alloy; Nickel (Underplating; U Slot) Headers & Wire Housings 16P IDC SOCKET WIRE-BOARD CONN, SOCKET, 16POS, 2.54MM Socket;16Contact,.1"x.1"for.05"Pitchcbl,closedend,CenterbumpandMilitary
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	05400733657 80610121115	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	100

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85369010
RoHS合规（认证）	Yes

电气参数

最大额定电流

1 A

机械参数

颜色	Gray	深度	7.6 mm
间距	2.54 mm	高度	10.4 mm
重量	1 lb	包装方式	Bulk
导线类型	Ribbon Cable	导线线规	26-28 AWG
排间距	0.100" (2.54mm)	端接方式	IDT
触头类型	Female Socket	外壳颜色	Gray
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	Gold Over Nickel	安装样式	Cable
排数	2	触头材料	Copper Alloy
壳体材料	Polybutylene Terepht	总长度	24.9 mm
电缆端接方式	IDC	端接样式	IDC
第一触头极性	Socket (Female)	触点数	16
接触件端接	:IDC / IDT	位数	16
接触镀层厚度	30µin (0.76µm)	第一连接器安装类型	:Cable

产品信息

类型	IDC Connector	连接器性别	SKT
系列	3000	已删除	Compliant
产品特性	Closed End, Polarizing Key	产品子类型	Receptacles / Sockets - Housings

环境参数

工作温度

-55C to 105C

文档与媒体

在线文档

mediawebserver?6666660Zjcf6lVs6EVs6661ojCOrrrrQ-

在线文档

3000 Series Wiremount Socket

在线文档

mediawebserver?66666UuZjcFSLXTtlXfVmX&XEVuQEcuZgVs6EVs6E666666--
