158250-0120
| 制造商 | |
| 描述 | Conn IDC Connector SKT 50 POS 2mm IDT RA Cable Mount Sword CABLE RIBBON SKT 2MM 50POS GOLD IDC Socket 2mm 50 way conn centre bump Headers & Wire Housings 50P IDC SOCKET RIBBON CABLE MNT Au SOCKET, 2MM, IDC, 50WAY CABLERIBBONSKT2MM50POSGOLD 3M 158 系列 2行 50路 2mm节距 直角 母 IDC 连接器 , 电缆安装 |
| 分类 |
商业参数
| 零件号别名 | 05111196823 80001251422 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :3M - 158 Series | 额定电压 | 500 V |
| 开关功能 | Center Bump | 最大额定电流 | 1A |
机械参数
| 颜色 | Gray | 间距 | 2 mm |
| 重量 | 0.025 | 包装方式 | Bulk |
| 导线类型 | Ribbon Cable | 导线线规 | 28 AWG |
| 排间距 | 0.079" (2.00mm) | 端接方式 | IDT |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Socket | 接触镀层 | Gold Over Nickel |
| 安装样式 | Cable | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | Glass Fibre Reinforced PET |
| 主要材料 | Rectangular | 电缆端接方式 | IDC |
| 端接样式 | Through Hole | 第一触头极性 | Socket (Female) |
| 触点数 | 50 | 接触件端接 | :IDC / IDT |
| 位数 | 50 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | IDC Connector | 连接器性别 | SKT |
| 系列 | 158 | 产品特性 | Feed Through |
| 制造商全称 | 158Series | 产品子类型 | Receptacles / Sockets - Housings |
环境参数
| 工作温度 | +105°C | ||
文档与媒体
相关型号

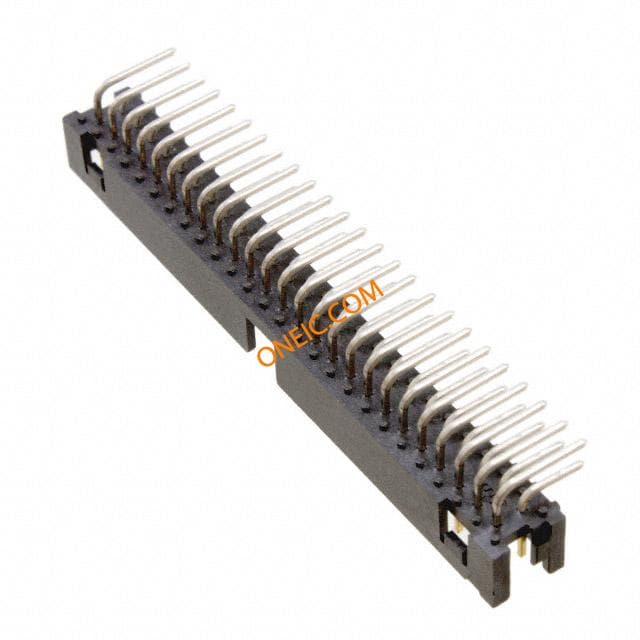

159250-5002
3m interconnect solutions
2MMHDR15AU50POSRATHCB.112TL CONN HEADER 2MM 50POS R/A GOLD Headers & Wire Housings 2MMHDR/15AU/50POS RATH/CB/.112TL

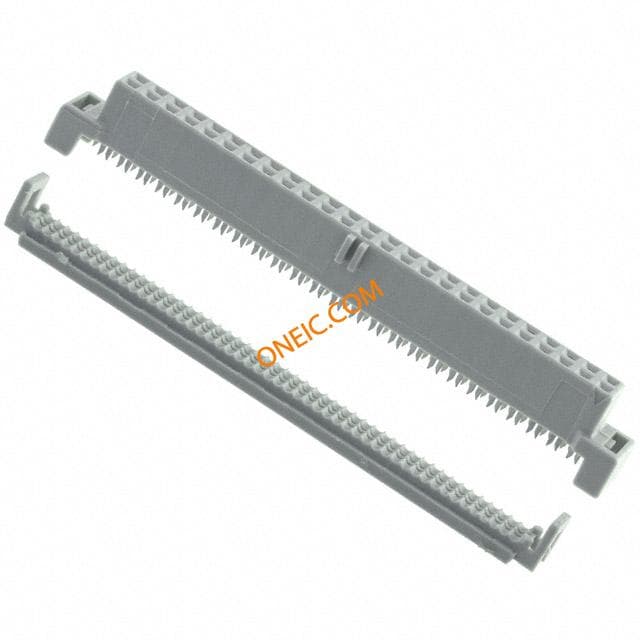

158150-1100
3m interconnect solutions
2MM WMS50PADHCBTRAY30AU CABLE RIBBON SKT 2MM 50POS GOLD IDC Socket 2mm 50 way conn centre bump Headers & Wire Housings 158150-1100=2MM WMS 50P\ADH\CB\TRAY\30AU SOCKET, 2MM, IDC, 50WAY IDCSocket2mm50wayconncentrebump 3M 158 系列 2行 50路 2mm节距 直角 母 IDC 连接器 , 电缆安装

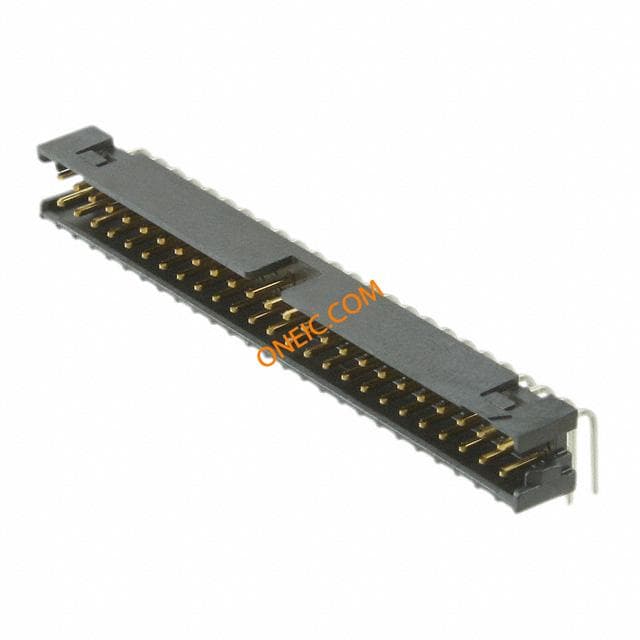

159150-5002
3m interconnect solutions
Conn Shrouded Header HDR 50 POS 2mm Solder RA Thru-Hole CONN HEADER 2MM 50POS R/A GOLD IDC Header 2mm 50w conn RATH centre bump HEADER, 2MM, R/A, THT, 50WAY CONNHEADER2MM50POSR/AGOLD

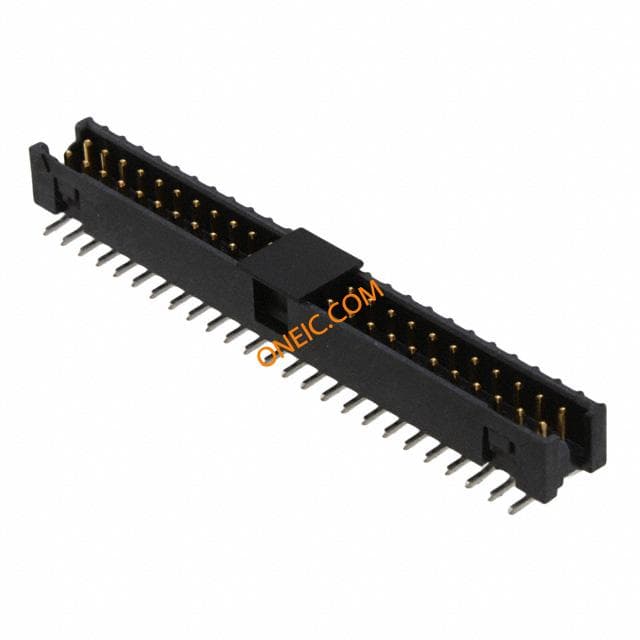

159150-2002
3m interconnect solutions
Conn Shrouded Header HDR 50 POS 2mm Solder ST SMD CONN HEADER 2MM 50POS VRT AU SMD IDC Header 2mm 50w conn VSMT centre bump HEADER, 2MM, VERT, SMT, 50WAY CONNHEADER2MM50POSVERTAUSMD
159150-6002
3m interconnect solutions
Conn Shrouded Header HDR 50 POS 2mm Solder ST Thru-Hole Headers & Wire Housings 50P VERTICAL HEADER THRU-HOLE, Au CONN HEADER 2MM 50POS VERT GOLD IDC Header 2mm 50w conn VTH centre bump HEADER, 2MM, VERT, THT, 50WAY CONNHEADER2MM50POSVERTGOLD
3448-15850
3m interconnect solutions
STRRLF2MM158SRS50POS CABLE STRAIN RELIEF 2MM 50POS Headers & Wire Housings STRAIN RELIEF FOR 50P CNCTR 3M(TM)RIBBONCABLESOCKET,158SERIES,STRAINRELIEF,50POSITION
159250-2002
3m interconnect solutions

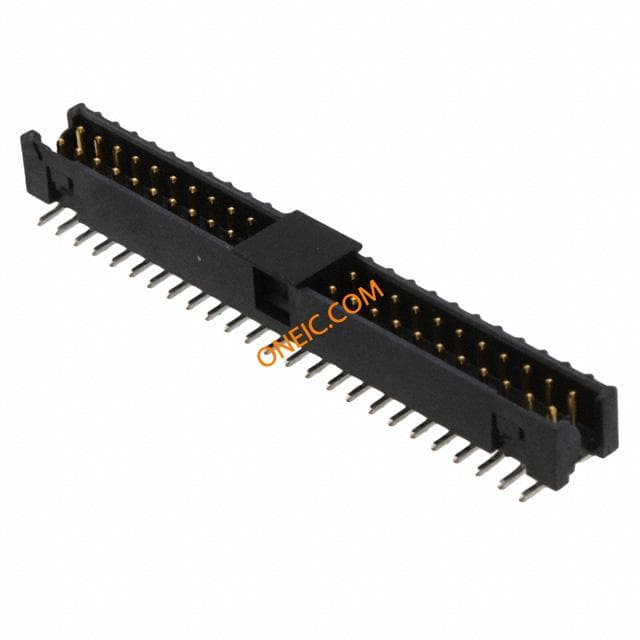

2MMHDR15AU50POSVSMTCB.112TL CONN HEADER 2MM 50POS VRT AU SMD Headers & Wire Housings 2MMHDR/15AU/50POS VSMT/CB/.112TL
159250-6002
3m interconnect solutions

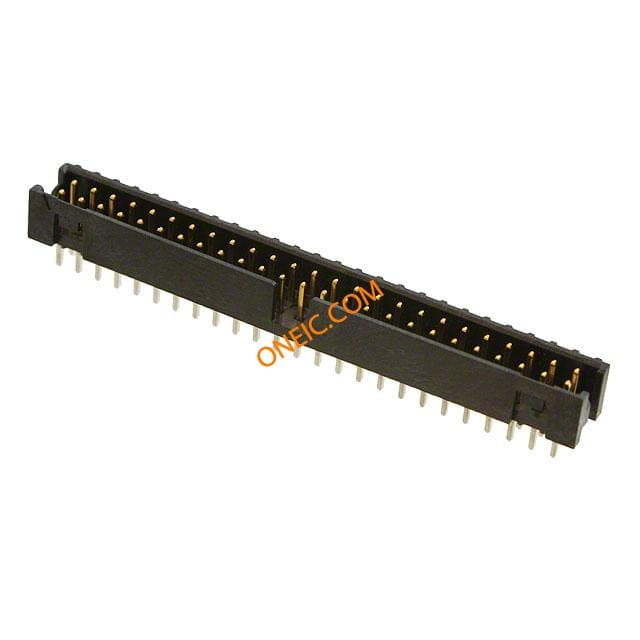

2MMHDR15AU50POSVTHCB.112TL CONN HEADER 2MM 50POS VERT GOLD Headers & Wire Housings 2MMHDR/15AU/50POS VTH/CB/.112TL
