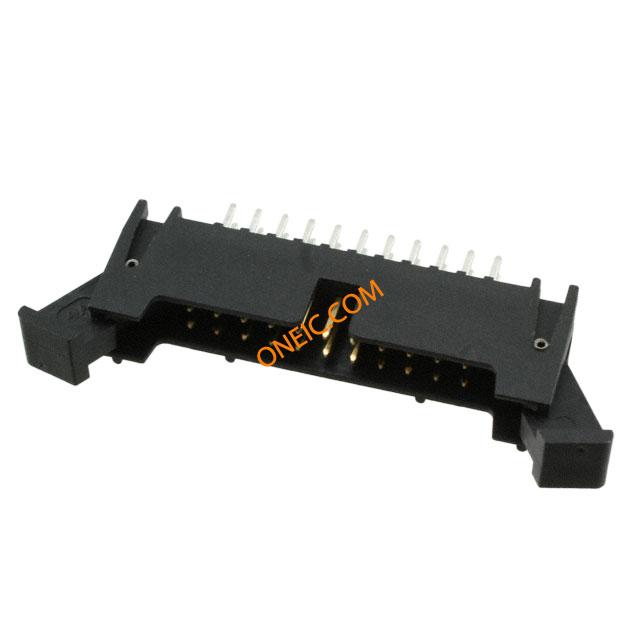

点击放大查看
155222-6202-RB
| 制造商 | |
| 描述 | Conn Ejector Header HDR 22 POS 2mm Solder ST Thru-Hole 2 mm x 2 mm Straight & Right Angle Through-Hole, Straight Surfacemount CONN HEADER 2MM 22POS VERT .112" Latch/EjectHeader2mm(22position)Straight |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | RoHS合规（认证） | Yes |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 最大额定电流 | 1A | ||
机械参数
| 颜色 | Black | 间距 | 2 mm |
| 包装方式 | Tray | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚长度（针脚） | 0.112" | 安装类型 | Through Hole |
| 行程角度 | Straight | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Latch Lock/Eject Hooks |
| 排数 | 2 | 触头材料 | CopperAlloy |
| 壳体材料 | GlassFilledPolyester | 总长度 | 1.303" |
| 插针孔直径 | 0.079" | 触点数 | 22 |
| 位数 | 22 | 接触长度 - 配合 | 0.150" (3.81mm) |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 产品特性 | EjectLatch | 制造商全称 | 1552Series |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55to+105°C | ||
