点击放大查看

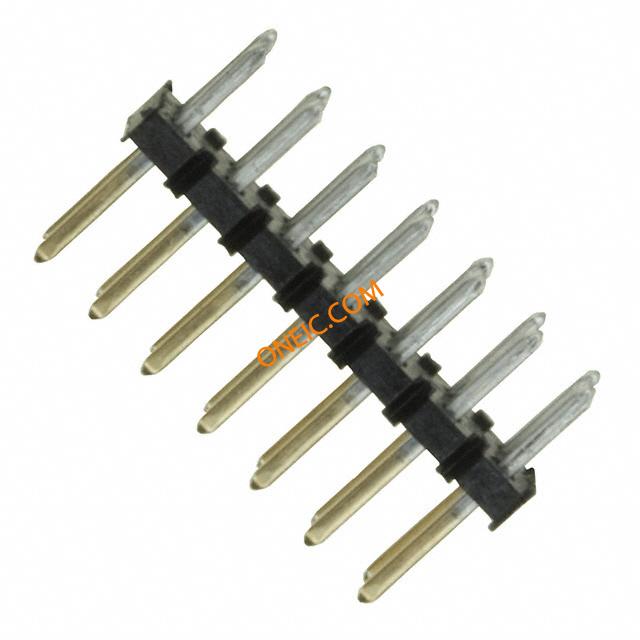

151214-8422-RB
| 制造商 | |
| 描述 | Conn Unshrouded Header HDR 14 POS 2mm Solder ST Thru-Hole 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 14POS 2MM HEADER DUAL VERT Headers & Wire Housings 14P STRT HEADER PIN STRIP 2MM |
| 分类 |
商业参数
| 零件号别名 | 05111166049 80000903247 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | RoHS合规（认证） | Yes |
电气参数
| 额定电压 | 500 V | 最大额定电流 | 1.5 A |
机械参数
| 颜色 | Black | 间距 | 2 mm |
| 包装方式 | Bulk | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Copper Alloy | 端接样式 | Through Hole |
| 触点数 | 14 | 位数 | 14 |
| 接触长度 - 配合 | 0.152" (3.86mm) | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | 1512 | 产品子类型 | Headers |
| 加载位置数 | All | ||
文档与媒体
相关型号
150214-6002-RB
3m interconnect solutions
Conn Socket Strip SKT 14 POS 2mm Solder ST Thru-Hole 2 mm x 2 mm Str. Surfacemount, Str. and R. A. Plated Through-Hole CONN 14POS 2MM SOCKET VERT PC MT
950414-6102-AR
3m interconnect solutions
Conn Socket Strip SKT 14 POS 2mm Solder ST Thru-Hole 2 mm and 2 mm x 2 mm Straight, Solder Tail CONN SOCKET 14POS 2MM VERT T/H Headers & Wire Housings 14P BD MNT SKT 2R STRT PTH 10U AU BOARD-BOARD CONN, SOCKET, 14WAY, 2ROW
953214-2000-AR-PT
3m interconnect solutions
Conn Socket Strip SKT 14 POS 2mm Solder ST SMD Tube 2 mm x 2 mm Straight, Dual Entry, Surface Mount CONN SOCKET 14POS 2MM VERT SMD

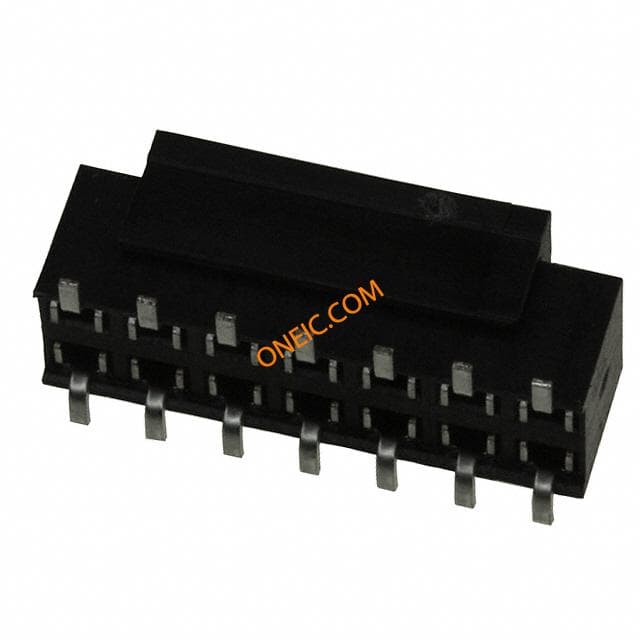

953214-2000-AR-PR
3m interconnect solutions
Conn Socket Strip SKT 14 POS 2mm Solder ST SMD T/R 2 mm x 2 mm Straight, Dual Entry, Surface Mount CONN SOCKET 14POS 2MM VERT SMD
950414-5002-AR
3m interconnect solutions
Conn Socket Strip SKT 14 POS 2mm Solder RA Thru-Hole 2 mm and 2 mm x 2 mm Right Angle, Solder Tail CONN SOCKET 14POS RT/A 2MM T/H Headers & Wire Housings 14P BDMNT SKT 2R STRT PTH 10U AU BOARD-BOARD CONN, SOCKET, 14WAY, 2ROW
956214-2000-AR-PT
3m interconnect solutions
Conn Socket Strip SKT 14 POS 2mm Solder ST SMD Tube 2 mm x 2 mm Straight, Dual or Bottom Entry, Surface Mount CONN SOCKET 14POS 2MM VERT SMD
956214-2700-AR-PT
3m interconnect solutions
Conn Socket Strip SKT 14 POS 2mm Solder ST SMD Tube 2 mm x 2 mm Straight, Dual or Bottom Entry, Surface Mount CONN SOCKET 14POS 2MM VERT SMD
956214-2720-AR-TP
3m interconnect solutions
Conn Socket Strip SKT 14 POS 2mm Solder ST SMD Tube 2 mm x 2 mm Straight, Dual or Bottom Entry, Surface Mount CONN SOCKET 14POS 2MM VERT SMD
153214-2000-RB-WB
3m interconnect solutions
Conn Socket Strip SKT 14 POS 2mm Solder ST SMD T/R 2 mm x 2 mm Surfacemount CONN 2MM SKT 14POS THRU-BRD SMD 3M 1532 Series 2mm 14 Way 2 Row Straight PCB Socket Surface Mount SocketTHSMD1532Series14way 3M 1532 系列 2行 14路 直 2mm节距 表面贴装 印刷电路板插座
W153214-2000-TB
3m interconnect solutions
Conn Board to Board SKT 14 POS 2mm Solder ST SMD Tray CONN SOCKET 14POS 2MM SMD

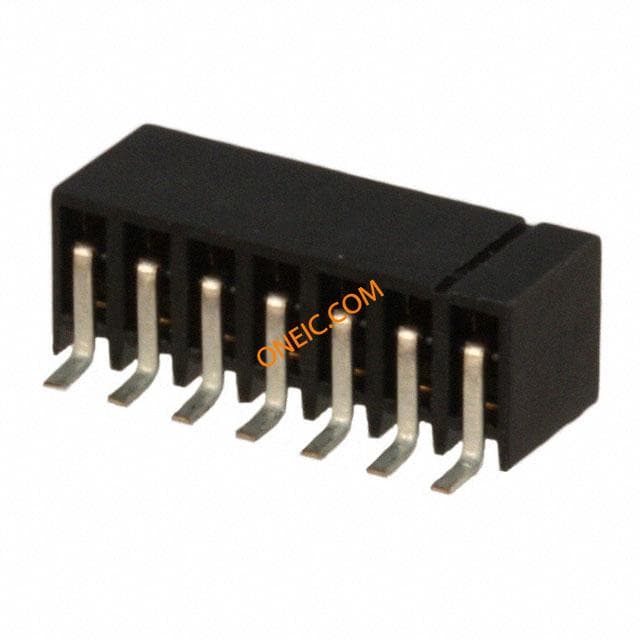

950414-8200-AR-TR
