点击放大查看

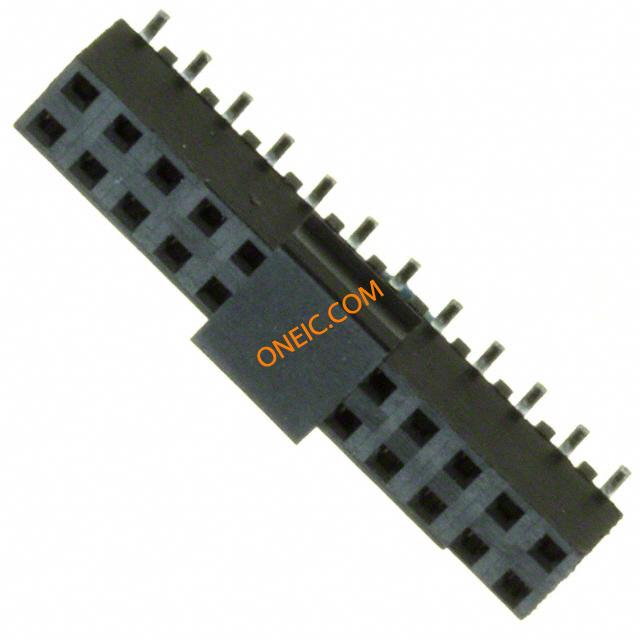

150224-2020-RB-WD
| 制造商 | |
| 描述 | Conn Socket Strip SKT 24 POS 2mm Solder ST SMD T/R 2 mm x 2 mm Str. Surfacemount, Str. and R. A. Plated Through-Hole CONN 24POS 2MM SOCKET STR PC SMD Headers & Wire Housings 20 POSITION W/POST |
| 分类 |
商业参数
| 其他名称 | 3M5316DKR | 零件号别名 | 05111166096 80000903700 |
| 标准包装数量 | Tape & Reel | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Black | 间距 | 2 mm |
| 重量 | 10.400001 oz | 包装方式 | Tape & Reel (TR) |
| 排间距 | 0.079" (2.00mm) | 端接方式 | Solder |
| 触头类型 | Female Socket | 安装类型 | Surface Mount |
| 连接器类型 | Receptacle | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触点数 | 24 |
| 位数 | 24 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Socket Strip | 连接器性别 | SKT |
| 系列 | 1502 | 产品特性 | Board Guide |
| 产品子类型 | Receptacles / Sockets - PCB | 加载位置数 | All |
