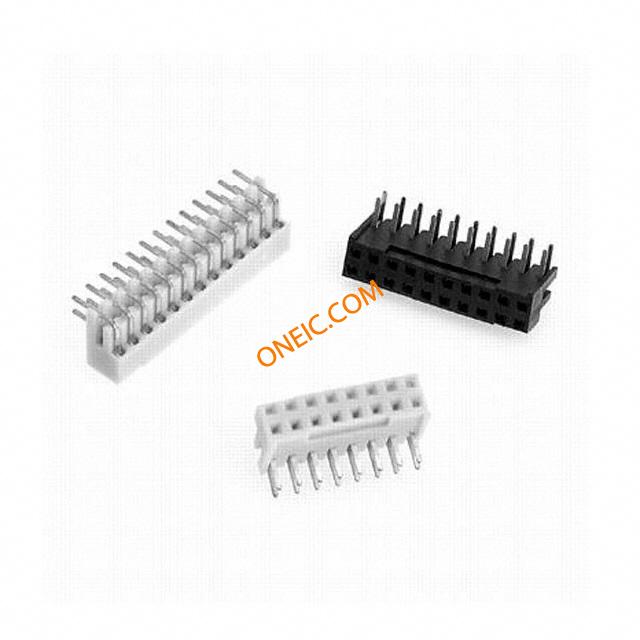

点击放大查看
150210-5002-TB
| 制造商 | |
| 描述 | Conn Socket Strip SKT 10 POS 2mm Solder RA Thru-Hole 2 mm x 2 mm Str. Surfacemount, Str. and R. A. Plated Through-Hole CONN SOCKET 2MM 10POS R/A 30GOLD Socket;Pak20Boardmount;CopperAlloy;GlassFilledPCT;1.5A;10;500VDC |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 标准 | ULListed,ULRecognized,cULRecognized |
| 认证机构 | cUL,UL | 材料阻燃等级 | UL94V-0 |
电气参数
| 额定电压值 | 500VDC | 最大额定电流 | 1.5A |
| 绝缘电阻 | >5x10^9Ohms | ||
机械参数
| 颜色 | Black | 间距 | 2 mm |
| 镀层 | Gold | 包装方式 | Tray |
| 排间距 | 0.079" (2.00mm) | 端接方式 | Solder |
| 触头类型 | Female Socket | 引脚长度（针脚） | 0.1" |
| 插座深度（或方向） | Pak20Boardmount | 安装类型 | Through Hole, Right Angle |
| 行程角度 | Right | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 端子样式 | SolderTails | 触头材料 | CopperAlloy |
| 壳体材料 | GlassFilledPolyester | 总长度 | 0.389" |
| 主要材料 | InterconnectSystem | 尺寸/外形 | 0.389in.Lx0.310in.Wx0.179in.H |
| 插针孔直径 | 0.79" | 触点数 | 10 |
| 位数 | 10 | 绝缘材料 - 材质 | GlassFilledPCT |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Socket Strip | 连接器性别 | SKT |
| 产品特性 | Boardmount | 制造商全称 | 1502Series |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55to+105°C | 结工作温度 | 105°C |
文档与媒体
