点击放大查看

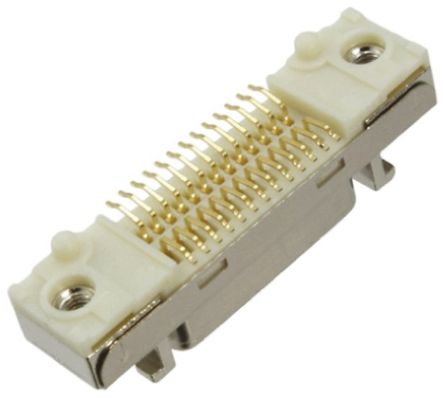

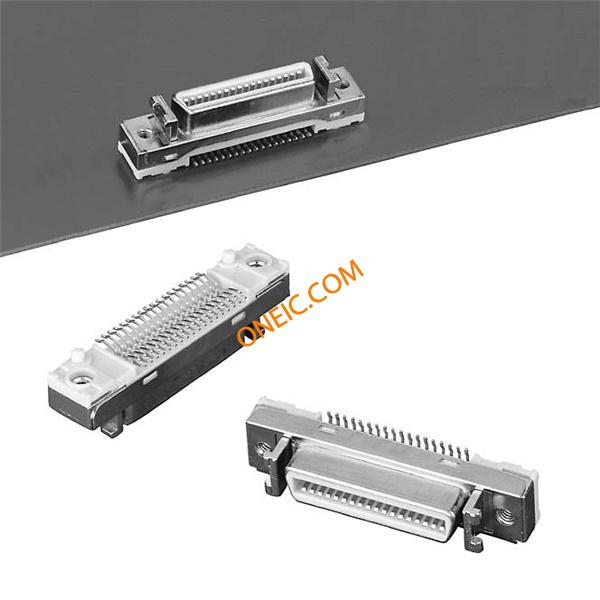

10226-2210PE
| 制造商 | |
| 描述 | Conn SCSI RCP 26 POS 1.27mm Solder ST SMD 26 Terminal 1 Port D-Sub Micro-D Connectors 26P VERT RECEPTACLE SMT BOARDMNT SHIELD Boardmount Receptacle, Surface Mount, Vertical, Shielded CONN MINI-D 26POS RECPT SMT 3M 102 Series 0.5in 26 Way 2 Row Right Angle PCB Socket Surface Mount .050 Mini D Ribbon (MDR) 26 Pos. Surface Mount Vertical Receptacle-Shielded RECEPTACLE, VERT, SMT, 26WAY Conn;D-Sub;Mini-D-Ribbon;CableSocket;26Pos;STR;102Series;SMT;.050In. 3M 102 系列 2行 26路 直角 12.7mm节距 表面贴装 印刷电路板插座 |
| 分类 |
商业参数
| 零件号别名 | 54745250801 JE150343687 | 产品类别 | D-Sub Micro-D Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 标准 | UL94V-0 |
| 海关税号 | 85366990 | 认证机构 | cUL,UL |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 最大额定电流 | 1 A | ||
机械参数
| 间距 | 1.27 mm | 重量 | 0.192 |
| 端接方式 | Solder | 安装类型 | Surface Mount |
| 行程角度 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 法兰特征 | Insert, Threaded (M2.5); Latchblocks |
| 安装样式 | SMD/SMT | 排数 | 2 |
| 连接器样式 | Outer Shroud Contacts | 插入件材料 | Polyester |
| 触头材料 | Copper Alloy | 壳体材料 | ZincAlloy |
| 主要材料 | Mini-D-Ribbon | 端接样式 | Solder |
| 触点数 | 26 | 接触件端接 | :Surface Mount Vertical |
| 介电材料 | PBT | 位数 | 26 |
| 接触镀层厚度 | 30µin (0.76µm) | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | SCSI | 连接器性别 | RCP |
| 系列 | 102 | 产品特性 | Board Guide, Shielded |
| 制造商全称 | 102 | ||
