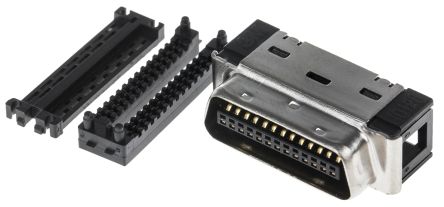

点击放大查看
10126-6000EL
| 制造商 | |
| 描述 | Conn SCSI PL 26 POS 1.27mm IDT RA Cable Mount 26 Terminal 1 Port D-Sub Micro-D Connectors 26P METAL FACE PLUG 28 AWG MINI D RIBBON 26 CONTACT MDR 26 way cable mount plug,1A MDR26-WAYPLG Connector: MDR; plug; male; shielded; PIN:26; Contacts ph:1.27mm 3M 101 系列 1.27mm 节距 26 路 IDC Mini-D 带状电缆连接器, 插头, 钢外壳 |
| 分类 |
商业参数
| 零件号别名 | 90169007915 JE150151320 | 产品类别 | D-Sub Micro-D Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | No | 材料阻燃等级 | UL94V-0 |
电气参数
| 测试电压 | 0.5kV | 额定电压 | 150 V ac, 200 V dc |
| 最大额定电流 | 1 A | 最小供电电压 | 200VDC/150VAC |
| 触点额定电流 | 1A | 连接器类型 - 电压输入 | shielded |
机械参数
| 深度 | 9.1mm | 间距 | 1.27 mm |
| 宽度 | 12.7mm | 高度 | 12.7 mm |
| 长度 | 25.8mm | 重量 | 6.81 g |
| 导线线规 | 28...30AWG | 端接方式 | IDT |
| 柱间距 | 1.27mm | 基体材料 | polyester |
| 安装类型 | Cable Mount | 外壳镀层 | Nickel |
| 连接器类型 | male | 接触镀层 | Gold |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | Glass Fibre Reinforced PET |
| 总长度 | 25.8 mm | 包装数量 | 100 |
| 尺寸/外形 | 25.8 x 12.7 x 9.1mm | 连接器 - 电缆 | plug |
| 端接样式 | Solder | 触点数 | 26 |
| 位数 | 26 | 触点材料 - 镀层 | nickel plated, gold plated |
产品信息
| SPG | 100 | 类型 | SCSI |
| 连接器性别 | PL | 系列 | * |
| 端口数 | 1 Port | 单元数量 | 1 |
环境参数
| 工作温度 | +85°C | 结工作温度 | 85C |
