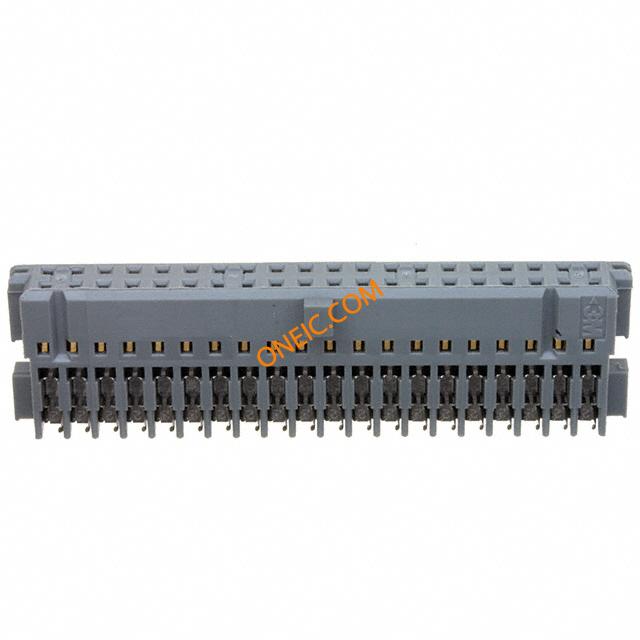

CHG-2040-J01010-KEP

制造商	3M Company
描述	Headers & Wire Housings 40P PLRZD IDC SOCKET 22 AND 24 AWG .100" Ã .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 40POS 24-22 AWG CONNECTOR, 2.54MM, 40WAY Conn;Rect;Socket;Wiremnt;0.1inPitch;40Pos;2Row;24-22AWG;IDC;CHGSer;Polar
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	05400762181 80610212187	产品类别	Headers & Wire Housings
标准包装数量	100	工厂包装数量	100

合规参数

RoHS	RoHS Compliant	标准	DIN41612
海关税号	85369010	认证机构	cUL,UL
RoHS合规（认证）	Yes	材料阻燃等级	:UL94V-0

电气参数

击穿电压

:1000V

最大额定电流

:2A

机械参数

颜色	Gray	间距	2.54 mm
重量	1 lb	包装方式	Bulk
导线类型	Discrete or Ribbon Cable	导线线规	22-24 AWG
排间距	0.100" (2.54mm)	端接方式	:Crimp
触头类型	Female Socket	引脚间距	:2.54mm
安装类型	Free Hanging (In-Line)	行程角度	Straight
连接器类型	Receptacle	接触镀层	Gold
安装样式	Free Hanging	排数	2
触头材料	:Copper Alloy	总长度	2.18"
主要材料	Rectangular	电缆端接方式	IDC
插针孔直径	0.1"	端接样式	IDC
第一触头极性	Socket (Female)	连接器颜色	:Grey
触点数	40	介电材料	PBT
绝缘直径	0.054"	位数	40
接触镀层厚度	30µin (0.76µm)	线规或范围 - AWG	:24AWG

产品信息

类型	Ribbon Cable	连接器性别	:Socket
系列	CHG	产品特性	Closed End, Polarizing Key
制造商全称	CHGSeries	产品子类型	Receptacles / Sockets - Housings

环境参数

工作温度

:105°C

文档与媒体

在线文档

CHG-20 Series

PDF 文档

89796.pdf
