首页产品分类连接器解决方案板对板连接器板对板连接器CHG-2030-J01010-KEP

点击放大查看

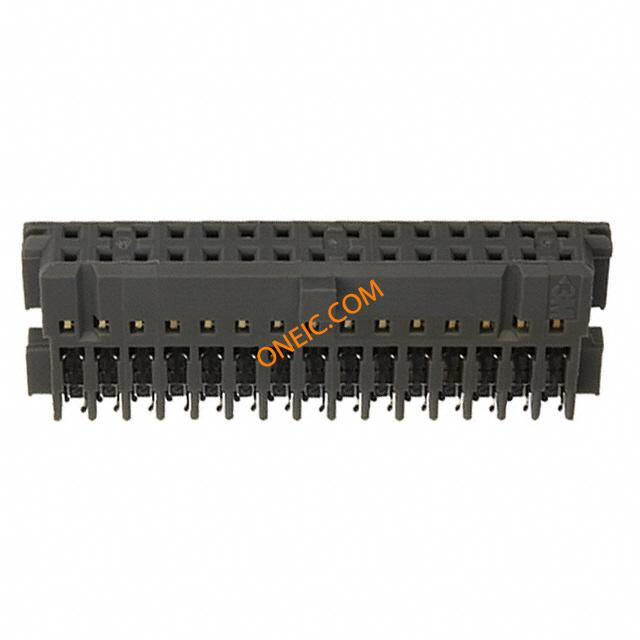

CHG-2030-J01010-KEP

制造商	3M Company
描述	ヘッダ & ワイヤハウジング 30P PLRZD IDC SOCKET .100" Ã .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 30POS 24-22 AWG POLARIZED WIREMOUNT SOCKET;GOLD WIPE AREA;22/24AWG;30 CONTACT Headers & Wire Housings 30P PLRZD IDC SOCKET Conn;Rect;Socket;Wiremnt;0.1inPitch;30Pos;2Row;24-22AWG;IDC;CHGSer;Polar
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	05400762858 80610418644	产品类别	Headers & Wire Housings
标准包装数量	100	工厂包装数量	100

合规参数

RoHS	Lead free / RoHS Compliant	标准	DIN41612
认证机构	cUL,UL	RoHS合规（认证）	Yes
材料阻燃等级	UL94V-0

电气参数

最大额定电流

2 A

机械参数

颜色	Gray	间距	0.100" (2.54mm)
重量	1 lb	包装方式	Bulk
导线类型	Discrete or Ribbon Cable	导线线规	22-24 AWG
排间距	0.100" (2.54mm)	端接方式	IDC
触头类型	Female Socket	安装类型	Free Hanging (In-Line)
行程角度	Straight	连接器类型	Receptacle
接触镀层	Gold	安装样式	Cable
排数	2	触头材料	Copper Alloy
总长度	1.68"	主要材料	Rectangular
电缆端接方式	IDC	插针孔直径	0.1"
端接样式	IDC	第一触头极性	Socket (Female)
触点数	30	介电材料	PBT
绝缘直径	0.054"	位数	30
接触镀层厚度	30µin (0.76µm)

产品信息

类型	Ribbon Cable	系列	CHG
产品特性	Closed End, Polarizing Key	制造商全称	CHGSeries
产品子类型	Receptacles / Sockets - Housings

环境参数

工作温度

-55to+105°C

文档与媒体

在线文档

CHG-20 Series

在线文档

mediawebserver.dyn?6666660Zjcf6lVs6EVs666UB9COrrrrQ-
