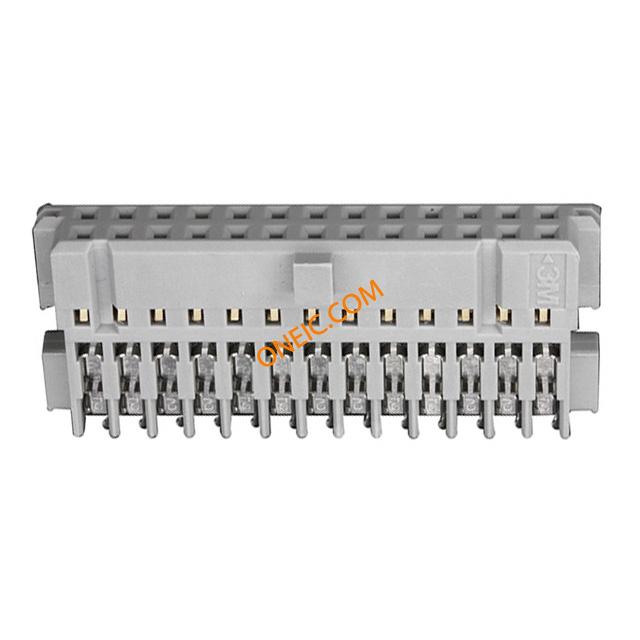

CHG-2026-J01010-KEP
| 制造商 | 3M Company |
| 描述 | Headers & Wire Housings 26P PLRZD IDC SOCKET .100" Ã .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 26POS 24-22 AWG POLARIZED WIREMOUNT SOCKET;GOLD WIPE AREA;22/24AWG;26 CONTACT Conn;Rect;Socket;Wiremnt;0.1inPitch;26Pos;2Row;24-22AWG;IDC;CHGSer;Polar |
| 分类 |
商业参数
| 零件号别名 | 05400761906 80610209456 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | DIN41612 |
| 认证机构 | cUL,UL | RoHS合规（认证） | Yes |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 最大额定电流 | 2A | ||
机械参数
| 颜色 | Gray | 间距 | 0.100" (2.54mm) |
| 重量 | 1 lb | 包装方式 | Bulk |
| 导线类型 | Discrete or Ribbon Cable | 导线线规 | 22-24 AWG |
| 排间距 | 0.100" (2.54mm) | 端接方式 | IDC |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 安装样式 | Cable |
| 排数 | 2 | 触头材料 | CopperAlloy |
| 总长度 | 1.48" | 主要材料 | Rectangular |
| 电缆端接方式 | IDC | 插针孔直径 | 0.1" |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 触点数 | 26 | 介电材料 | PBT |
| 绝缘直径 | 0.054" | 位数 | 26 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Ribbon Cable | 系列 | CHG |
| 产品特性 | Closed End, Polarizing Key | 制造商全称 | CHGSeries |
| 产品子类型 | Receptacles / Sockets - Housings | ||
环境参数
| 工作温度 | -55to+105°C | ||
