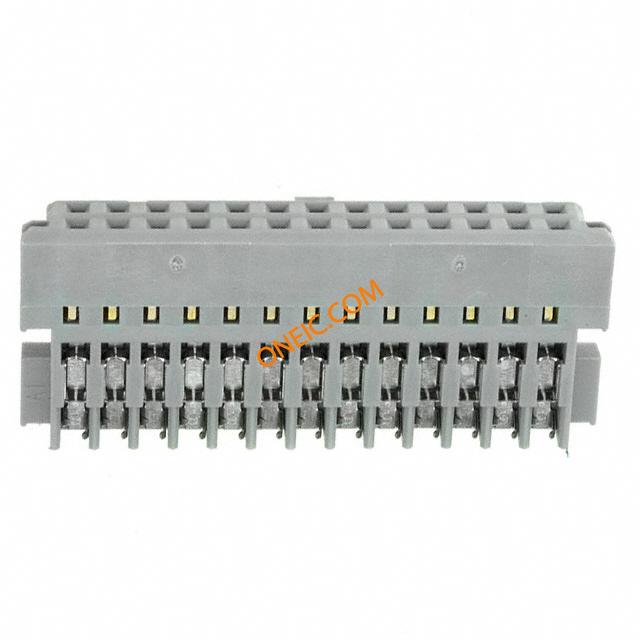

CHG-2026-J01010-KCP
| 制造商 | 3M Company |
| 描述 | Headers & Wire Housings 26P PLRZD IDC SOCKET .100" Ã .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 26POS 28-26 AWG Conn;Rect;Socket;Wiremnt;0.1inPitch;26Pos;2Row;28-26AWG;IDC;CHGSer;Polar |
| 分类 |
商业参数
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | DIN41612,MIL-G-45204,QQ-N-290 |
| 认证机构 | cUL,UL | RoHS合规（认证） | Yes |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 最大额定电流 | 1.5A | ||
机械参数
| 颜色 | Gray | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 导线类型 | Discrete or Ribbon Cable |
| 导线线规 | 26-28 AWG | 排间距 | 0.100" (2.54mm) |
| 端接方式 | IDC | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Gold |
| 排数 | 2 | 触头材料 | CopperAlloy |
| 总长度 | 1.48" | 主要材料 | Rectangular |
| 电缆端接方式 | IDC | 插针孔直径 | 0.1" |
| 触点数 | 26 | 介电材料 | PBT |
| 绝缘直径 | 0.054" | 位数 | 26 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Socket,Wiremount | 产品特性 | Closed End, Polarizing Key |
| 制造商全称 | CHGSeries | ||
环境参数
| 工作温度 | -55to+105°C | ||
