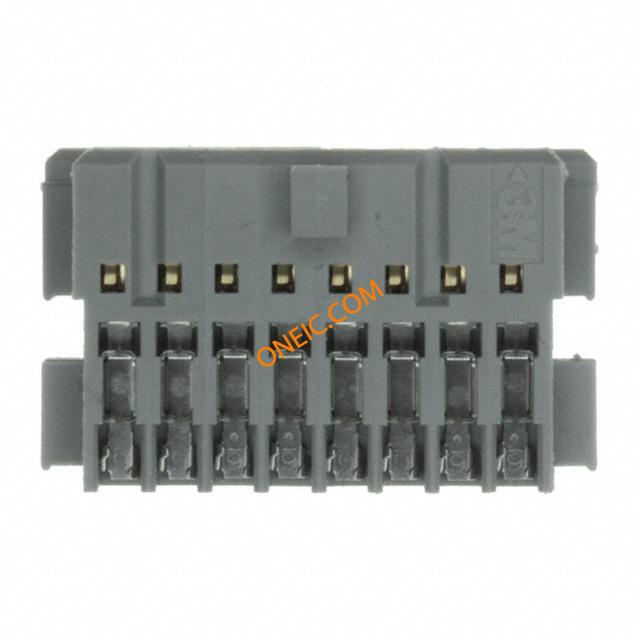

点击放大查看
CHG-2016-J01010-KCP
| 制造商 | 3M Company |
| 描述 | ヘッダ & ワイヤハウジング 16P PLRZD IDC SOCKET .100" Ã .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 16POS 28-26 AWG Headers & Wire Housings 16P PLRZD IDC SOCKET |
| 分类 |
商业参数
| 零件号别名 | 05400766830 80610425383 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | RoHS合规（认证） | Yes |
电气参数
| 最大额定电流 | 1.5 A | ||
机械参数
| 颜色 | Gray | 间距 | 0.100" (2.54mm) |
| 重量 | 1 lb | 包装方式 | Bulk |
| 导线类型 | Discrete or Ribbon Cable | 导线线规 | 26-28 AWG |
| 排间距 | 0.100" (2.54mm) | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 安装样式 | Cable |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 触点数 | 16 |
| 位数 | 16 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Ribbon Cable | 系列 | CHG |
| 产品特性 | Closed End, Polarizing Key | 产品子类型 | Receptacles / Sockets - Housings |
