929700-06-36

点击放大查看

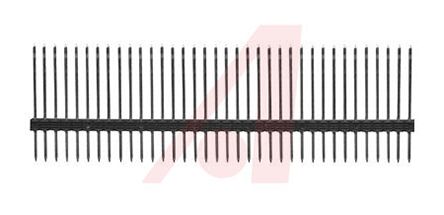

929700-06-36

制造商
3M Company
描述Headers & Wire Housings 36P STRT 1 ROW TIN .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER 36POS STR .100" TIN Header; Pin Strip; 36; Flange; 4-40; Copper Alloy; 2.5 A; Black Insulation Header;PinStrip;36;.100#,.318#MatingL,Straight,Soldertail,tin-leadpltg 3M 929 系列 2.54mm节距 36路 (1排) 直 引脚管座, 焊接端接, 2.5A , 通孔
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名05400781170 80620033151产品类别Headers & Wire Housings
标准包装数量100工厂包装数量100

合规参数

RoHSVendor undefined / RoHS non-compliant认证机构cUL,UL
RoHS合规（认证）No材料阻燃等级UL94V-0

电气参数

额定电压1.5 kV最大额定电流2.5 A
绝缘电阻>5x10^9Ohms@500VDC

机械参数

颜色Black间距0.100" (2.54mm)
包装方式Bulk方向直
端接方式Solder螺纹尺寸4-40
触头类型Male Pin引脚长度（针脚）0.318"
尾部长度0.71in.安装类型Through Hole
行程角度Straight连接器类型Header, Unshrouded, Breakaway
接触镀层Tin-Lead安装样式Flange
排数1端子样式PrintedCircuitBoard
触头材料Copper Alloy壳体材料GlassFilledPolyester
总长度3.6"主要材料PinStrip
端接排数焊接插针孔直径0.1"
端接样式Through Hole第一触头极性Pin (Male)
触点数36绝缘直径1500V(RMS)
位数36绝缘材料 - 材质GlassFilledPolyester
接触长度 - 配合0.318" (8.08mm)接触镀层厚度100µin (2.54µm)

产品信息

类型Pin Strip系列929
覆盖范围无覆盖产品特性Stackable
制造商全称929Series产品子类型Headers
加载位置数All

环境参数

工作温度-40to+105°C

文档与媒体

PDF 文档
929 Series, Pin Strip Header, Single/Dual Row
在线文档
mediawebserver?mwsId=66666UuZjcFSLXTtmXME5x46EVuQEcuZgVs6EVs6E666666--
