点击放大查看

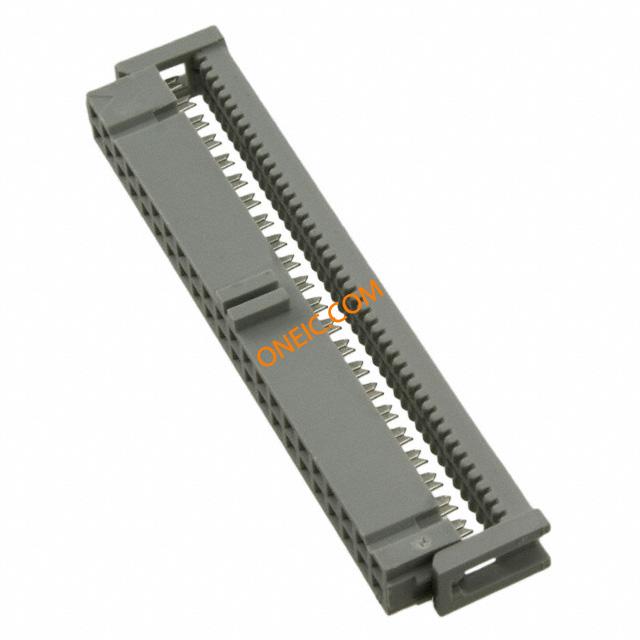

89144-0101
| 制造商 | |
| 描述 | ヘッダ & ワイヤハウジング 44P IDC SOCKET .100" Ã .100" Preassembled Wiremount for .050" Pitch Cable CONN SOCKET 44POS IDC DL POL Headers & Wire Housings 44P IDC SOCKET WIRE TO BOARD, RECEPTACLE, 44POS, 2.54MM Socket;GlassFilledPolyester;CopperAlloy;Nickel(Underplating);1A;Gray |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 零件号别名 | 05400754496 80610706808 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 500 | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| RoHS合规（认证） | Yes | ||
机械参数
| 颜色 | Gray | 间距 | 0.100" (2.54mm) |
| 重量 | 8 lbs | 包装方式 | Bulk |
| 导线类型 | Ribbon Cable | 导线线规 | 26-28 AWG |
| 排间距 | 0.100" (2.54mm) | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 排数 | 2 |
| 触头材料 | :Phosphor Bronze | 电缆端接方式 | IDC |
| 第一触头极性 | Socket (Female) | 触点数 | 44 |
| 接触件端接 | :IDC / IDT | 位数 | 44 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 连接器性别 | :Receptacle | 系列 | 891 |
| 产品特性 | Feed Through, Polarizing Key | 产品子类型 | Receptacles / Sockets - Housings |
