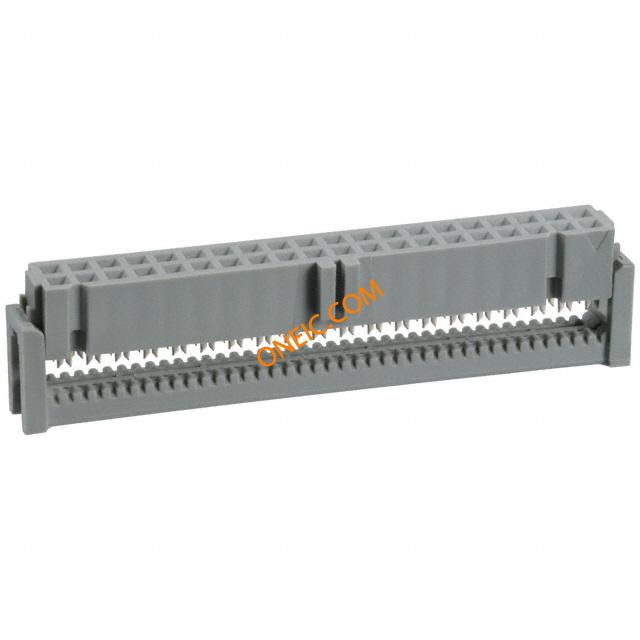

89140-0101
| 制造商 | 3M Company |
| 描述 | Headers & Wire Housings 40P IDC SOCKET .100" Ã .100" Preassembled Wiremount for .050" Pitch Cable CONN 40 POS IDC SOCKET GOLD POL IDC Ribbon Cable Socket 40 way Conn IDC Connector SKT 40 POS 2.54mm IDT RA Cable Mount SOCKET, IDC, 2.54MM, 40WAY Socket;GlassFilledPolyester;CopperAlloy;Nickel(Underplating);1A;Gray 3M 2行 40路 2.54mm节距 直角 电缆安装 母 IDC 连接器 |
| 分类 |
商业参数
| 零件号别名 | 05400751563 80610657399 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 500 | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366990 |
| RoHS合规（认证） | Yes | ||
电气参数
| 量程（°/s） | :3M - 891 Series | 最大额定电流 | 1.25A |
机械参数
| 颜色 | Gray | 深度 | 6.1 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 10.7 mm |
| 重量 | 7 lbs | 包装方式 | Bulk |
| 导线类型 | Ribbon Cable | 导线线规 | 26-28 AWG |
| 排间距 | 0.100" (2.54mm) | 端接方式 | IDT |
| 触头类型 | Female Socket | 外壳颜色 | Gray |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 安装样式 | Cable |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | PBT | 总长度 | 55.4 mm |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 触点数 | 40 |
| 接触件端接 | :IDC / IDT | 位数 | 40 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Ribbon Cable | 连接器性别 | Female |
| 系列 | 891 | 产品特性 | Feed Through, Polarizing Key |
| 产品子类型 | Receptacles / Sockets - Housings | ||
环境参数
| 工作温度 | +105°C | ||
文档与媒体
相关型号
