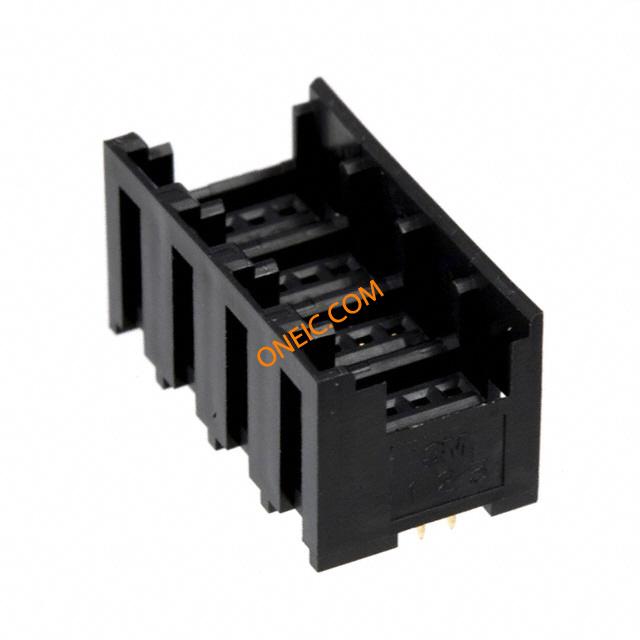

37212-62M3-003PL
| 制造商 | |
| 描述 | Headers & Wire Housings 12P BDMNT SKT TYPE M 4 ROWS 2 mm Boardmount Socket, Straight Solder Tails (Mini-Clamp) CONN SOCKET PCB 3POS 4-ROW MiniClamp,socket,PCB,4wayx2,TypeA 3M,SKT,PCB,4WAYX2,TYPEA Connector: wire-board; Mini-Clamp; socket; female; PIN:12; 2mm; 3A 3M 372 系列 4行 12路 2mm节距 母 IDC 连接器 , 通孔 |
| 分类 |
商业参数
| 零件号别名 | 54548623745072 54745245024 54862374507 JE150338752 JE150430112 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | Compliant | ||
电气参数
| 额定电压 | 32 V dc | 最大额定电流 | 3A |
机械参数
| 颜色 | Black | 间距 | 0.079" (2.00mm) |
| 重量 | 4 g | 包装方式 | Bulk |
| 方向 | straight | 排间距 | 0.256" (6.50mm) |
| 端接方式 | Solder | 触点形式 | Female Socket |
| 触头类型 | Female Socket | 引脚间距 | 0.256" (6.50mm) |
| 柱间距 | 2mm | 安装类型 | Through Hole |
| 连接器类型 | Receptacle | 接触镀层 | Gold |
| 排数 | 4 | 锁定特性 | lock |
| 触头材料 | Copper Alloy | 壳体材料 | Liquid Crystal Polymer |
| 端接排数 | 焊接 | 连接器 - 电缆 | socket |
| 端接样式 | Through Hole | 触点数 | 12 |
| 位数 | 12 | 接触镀层厚度 | 8µin (0.20µm) |
| 触点材料 - 镀层 | gold plated | 每排/每行位置数 | All |
| 第一连接器安装特征 | 4x3 | ||
产品信息
| 连接器性别 | Female | 系列 | 372 |
| 产品特性 | Latch Lock | 主要用途 | Latch Lock |
| 产品子类型 | Receptacles / Sockets - PCB | 适配器系列 | Mini-Clamp |
| 单元数量 | 1 | 输出配置 | Through Hole |
| 加载位置数 | All | ||
环境参数
| 工作温度 | +60°C | ||
