3419-6600

点击放大查看

3419-6600

制造商
3M Company
描述Headers & Wire Housings 30P IDC SOCKET .100" × .100" Wiremount for .050" Pitch Cable SOCK CONN 30 CONT OPEN W/POL GLD 3M 3000 Series 2.54mm 30 Way 2 Row Right Angle PCB Socket Cable Mount SOCKET CONNECTOR;30 CONTACTS Conn IDC Connector SKT 30 POS 2.54mm IDT RA Cable Mount SOCKET, IDC, 2.54MM, 30WAY SOCKETCONNECTOR;30CONTACTS Multipole socket DIN 41651 30P, 3419-6600, 3M 3M 3000 系列 2行 30路 2.54mm节距 直角 连接器 , 电缆安装
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名05400719588 80610151823产品类别Headers & Wire Housings
标准包装数量300工厂包装数量100

合规参数

RoHSLead free / RoHS Compliant海关税号85366990
RoHS合规（认证）Yes材料阻燃等级UL94V-0

电气参数

量程（°/s）:3M - 3000 Series最大额定电流1A

机械参数

颜色Gray深度7.6 mm
间距0.100" (2.54mm)高度10.4 mm
重量1.400 lbs包装方式Bulk
导线类型Ribbon Cable出线方向LowProfile
导线线规26-28 AWG, Stranded or Solid排间距0.100" (2.54mm)
端接方式IDT触头类型Female Socket
外壳颜色Gray安装类型Free Hanging (In-Line)
行程角度Straight连接器类型Receptacle
接触镀层Gold安装样式Cable
排数2触头材料Copper Alloy
壳体材料Polybutylene Terepht总长度42.7 mm
主要材料Industrial电缆端接方式IDC
插针孔直径0.1"端接样式IDC
第一触头极性Socket (Female)触点数30
接触件端接:IDC / IDT介电材料PBT
位数30接触镀层厚度30µin (0.76µm)

产品信息

类型Ribbon Cable连接器性别SKT
系列3000已删除Compliant
产品特性Feed Through, Polarizing Key制造商全称3000Series
产品子类型Receptacles / Sockets - Housings

环境参数

工作温度-55C to 105C

文档与媒体

在线文档
3000 Series Wiremount Socket
在线文档
mediawebserver?66666UuZjcFSLXTtlXfVmX&XEVuQEcuZgVs6EVs6E666666--

相关型号

N3440-6203RB

N3440-6203RB

3M Electronic Solutions Division

Headers & Wire Housings 30P STRT SOLDER TAIL LATCH/EJECTOR .100" × .100" Latch/Ejector, Straight and Right Angle CONN HEADER 30POS STR S-LATCH

¥17.3880
详情

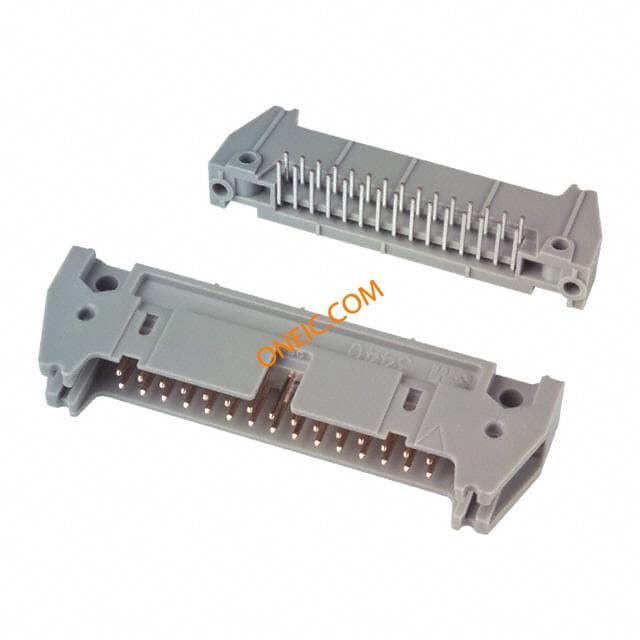

3440-5002

3440-5002

3m interconnect solutions

Conn Ejector Header HDR 30 POS 2.54mm Solder RA Thru-Hole .100" × .100" Latch/Ejector, Straight and Right Angle PROTECT HEADER RT/ANG 30 CONTACT WIRE-BOARD CONN, HEADER, 30POS, 2.54MM

¥18.1200
详情
暂无图片

3440-6502

3m interconnect solutions

Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole .100" × .100" Latch/Ejector, Straight and Right Angle CONN HEADER 30PS STR SHORT LATCH Headers & Wire Housings 30 PIN .112 30AVG 60:40 SNAP-IN

¥17.0000
详情
暂无图片

3440-6602UG

3m interconnect solutions

Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole *NCNR CONN HEADER 30POS STR LONG LATCH

详情

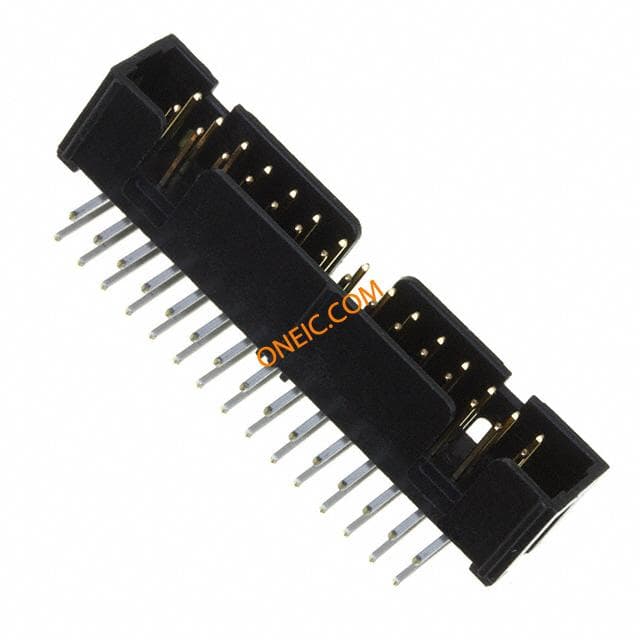

D2530-5002-AR

D2530-5002-AR

3m interconnect solutions

Conn Shrouded Header HDR 30 POS 2.54mm Solder RA Thru-Hole CONN HEADER 30POS R/A 10GOLD Headers & Wire Housings 30P 4-WALL HEADER RIGHT ANGLE 10U AU

¥6.3920
详情

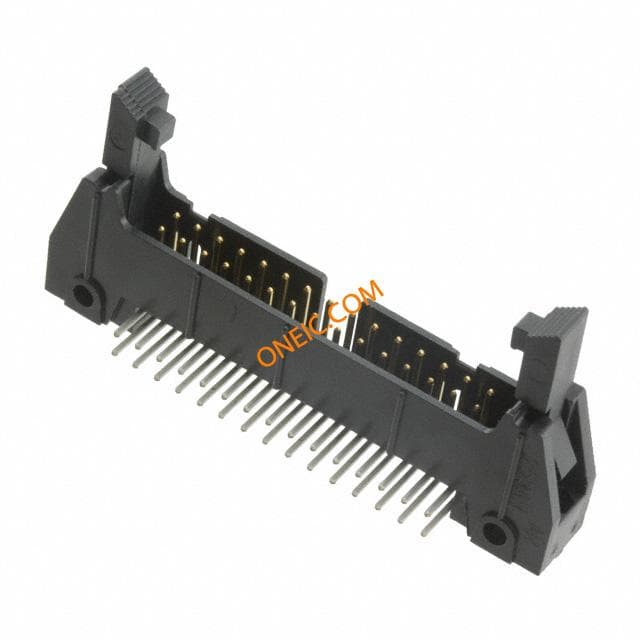

D3440-5302-AR

D3440-5302-AR

3m interconnect solutions

Conn Ejector Header HDR 30 POS 2.54mm Solder RA Thru-Hole CONN HEADER 30POS R/A LONG LATCH

¥9.9280
详情
暂无图片

4630-6301

3m interconnect solutions

Conn Ejector Header PL 30 POS 2.54mm IDT RA Cable Mount .100" × .100" Connector For .050" Pitch Cable CONN PLUG 30POS W/OUT FLANGE

¥30.4640
详情

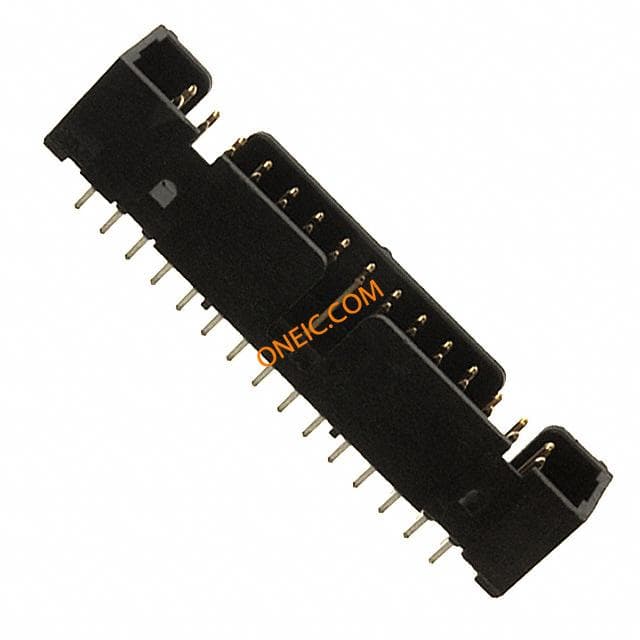

D2530-6002-AR

D2530-6002-AR

3m interconnect solutions

Conn Shrouded Header HDR 30 POS 2.54mm Solder ST Thru-Hole CONN HEADER 30POS VERT 10GOLD Headers & Wire Housings 30P 4-WALL HEADER STRAIGHT 10U AU

¥9.9280
详情

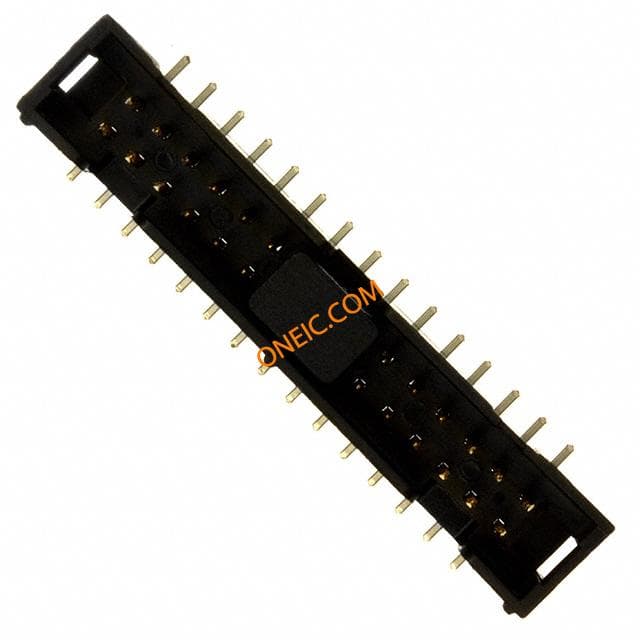

D2530-6V0C-AR-WF
