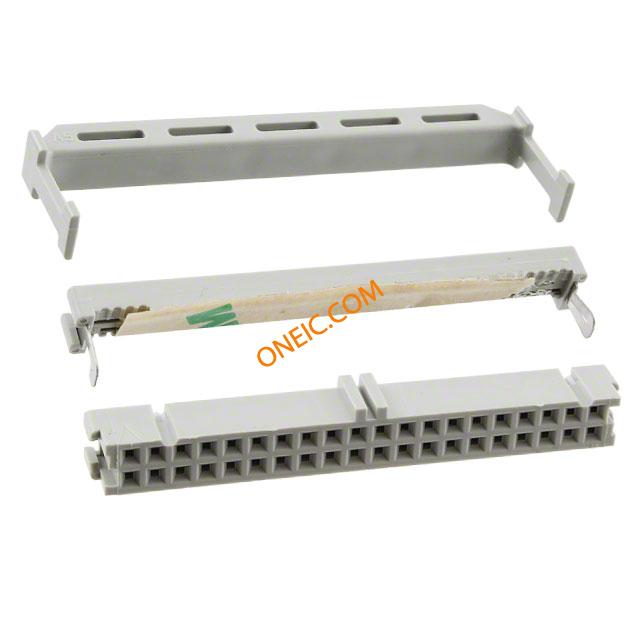

3417-7640

点击放大查看

3417-7640

制造商
3M Company
描述Headers & Wire Housings 40P IDC SOCKET .100" × .100" Wiremount for .050" Pitch Cable CONN SOCKET 40POS CLOSED END WIRE-BOARD CONN, SOCKET, 40POS, 2.54MM
分类
连接器解决方案压接与焊接端子/接头压接端子（通用）
对参数有疑问？问 AI 助手

商业参数

零件号别名05400733646 80610121008产品类别Headers & Wire Housings
标准包装数量300工厂包装数量100

合规参数

RoHSLead free / RoHS Compliant海关税号85366910
RoHS合规（认证）Yes

电气参数

量程（°/s）:3M - 3000 Series

机械参数

颜色Gray间距0.100" (2.54mm)
重量2.200 lbs包装方式Bulk
导线类型Ribbon Cable导线线规26-28 AWG
排间距0.100" (2.54mm)触头类型Female Socket
安装类型Free Hanging (In-Line)连接器类型Receptacle
接触镀层Gold安装样式Cable
排数2触头材料:Copper Alloy
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)触点数40
接触件端接:IDC / IDT位数40
接触镀层厚度30µin (0.76µm)

产品信息

类型Ribbon Cable连接器性别:Receptacle
系列3000产品特性Closed End, Polarizing Key, Strain Relief
产品子类型Receptacles / Sockets - Housings

文档与媒体

压缩文件
3417-7640-01.x_t
压缩文件
3417-7640-01.igs
压缩文件
3417-7640-01.stp
在线文档
3000 Series Wiremount Socket

相关型号

N3432-6002RB

N3432-6002RB

3M Electronic Solutions Division

Headers & Wire Housings BOARDMT HDR 40P NO LATCH/EJECTOR .100" × .100" Latch/Ejector, Straight and Right Angle PROTECT HEADER STRGT 40 CONTACT 3M 3000 Series 2.54mm Pitch 40 Way 2 Row Straight PCB Header, Solder Termination, 2A Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Header,4-Wall;CopperAlloy;200uin.60/40Tin/Lead;1;Black;0.68in.;40 Pin header DIN 41651 40P, N3432-6002RB, 3M 3M 3000 系列 2.54mm节距 40路 (2排) 直 PCB 针座, 焊接端接, 2A , 通孔

¥18.1200
详情
暂无图片

N3432-6603RB

3m interconnect solutions

40/HDR/LL/STR/HT/.155/30AVG/ROHS CONN HEADER 40POS STR GOLD T/H Headers & Wire Housings 40P STRT SOLDER TAIL LATCH/EJECTOR

¥20.6720
详情
暂无图片

N3432-L303RB

3m interconnect solutions

Conn Ejector Header HDR 80 POS 2.54mm Solder RA Thru-Hole CONN HEADER STKD 40POS R/A LO

¥80.3080
详情
N3432-6003RB

N3432-6003RB

3m interconnect solutions

Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole .100" × .100" Latch/Ejector, Straight and Right Angle CONN HEADER 40POS STR NO LATCH Headers & Wire Housings 40P STRT SOLDER TAIL LATCH/EJECTOR 3M(TM)FOUR-WALLHEADER,3000SERIES,N3432-6003RB

¥18.2240
详情
暂无图片

N3432-D303RB

3m interconnect solutions

Conn Ejector Header HDR 80 POS 2.54mm Solder RA Thru-Hole CONN HEADER STKD 40POS R/A LO

¥80.3080
详情
暂无图片

3432-2303

3m interconnect solutions

Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole .100" × .100" Three-Wall Latch/Ejector, Straight and Right Angle CONN HEADER 40POS STR LONG LATCH

¥24.6840
详情
3432-D302

3432-D302

3M Electronic Solutions Division

Headers & Wire Housings 50POS,STKD,3WALL 30U,LLTCH,.112 .100" × .100" Three-Wall Condo Header, Right Angle CONN HEADER STKD 40POS R/A LO

¥104.6520
详情
暂无图片

3432-5003

3M Electronic Solutions Division

Headers & Wire Housings HEADER 40POS R ANGLE NO LATCH .100" × .100" Latch/Ejector, Straight and Right Angle CONN HEADER 40POS R/A NO LATCH Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole

¥28.2880
详情

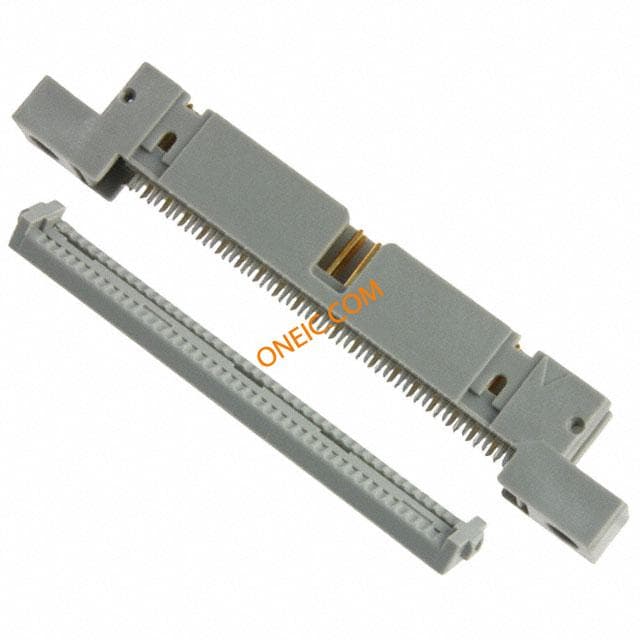

4640-6005

4640-6005

3M Electronic Solutions Division

Headers & Wire Housings 40 CONTACTS,OPEN END WIREMOUNT PLUG .100" × .100" Connector For .050" Pitch Cable CONN PLUG 40POS W/FLANGE&INSE

¥40.0520
详情

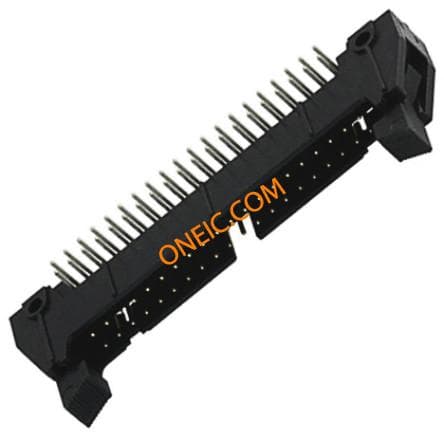

N3432-5203RB

N3432-5203RB

3M Electronic Solutions Division

ヘッダ & ワイヤハウジング BOARDMT HDR 40P .100" × .100" Latch/Ejector, Straight and Right Angle CONN HEADER 40POS R/A S-LATCH 3M 3000 Series 2.54mm Pitch 40 Way 2 Row Right Angle PCB Header, Solder Termination, 5A HEADER, RIGHT ANGLE, S/LATCH, 40WAY HeaderBox3000Series40way 3M 3000 系列 2.54mm节距 40路 (2排) 直角 PCB 针座, 焊接端接, 5A , 通孔

¥17.6800
详情
暂无图片

3432-5202

3M Electronic Solutions Division

Headers & Wire Housings 40P R/A SOLDER TAIL .100" × .100" Latch/Ejector, Straight and Right Angle CONN HEADER 40PS R/A SHORT LATCH

¥23.1200
详情
暂无图片

3432-5602

3M Electronic Solutions Division

Headers & Wire Housings USE 517-N3432-5302RB .100" × .100" Latch/Ejector, Straight and Right Angle CONN HEADER 40POS R/A LONG LATCH

¥22.9840
详情
暂无图片

3432-6603UG

3M Electronic Solutions Division

Headers & Wire Housings 40P STRT SOLDER TAIL CONN HEADER 40POS STR LONG LATCH

详情
暂无图片

2540-6003UG

3M Electronic Solutions Division

Headers & Wire Housings 40P STRT SOLDER TAIL CONN HEADER 40POS STR GOLD T/H

详情

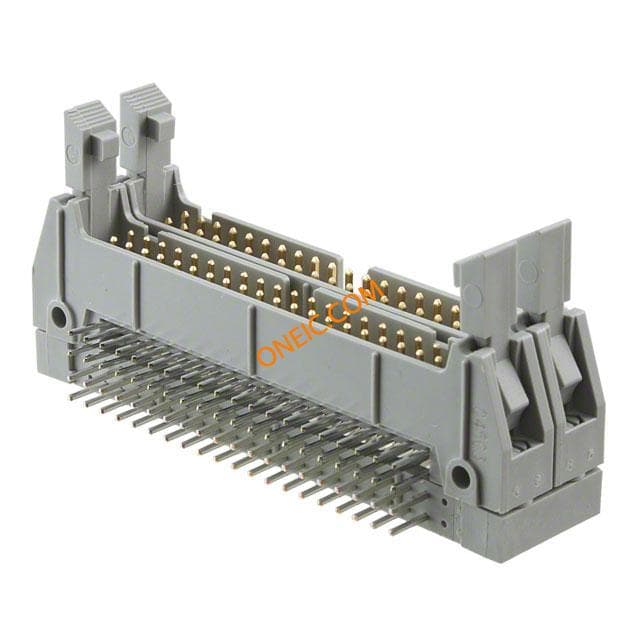

3432-L303

3432-L303

3M Electronic Solutions Division

Headers & Wire Housings 80P R/A CONDO SDR TL CONN HEADER STKD 40POS R/A LO

¥224.6108
详情
暂无图片

3432-L302

3M Electronic Solutions Division

Headers & Wire Housings 80P R/A CONDO SDR TL .100" × .100" Four-Wall Condo Header, Right Angle CONN HEADER STKD 80POS R/A LO

¥86.6320
详情
N3432-5002RB

N3432-5002RB

3M Electronic Solutions Division

Headers & Wire Housings 40P R/A SOLDER TAIL NO LATCH/EJECTOR .100" × .100" Latch/Ejector, Straight and Right Angle PROTECT HEADER RT ANG 40 CONTACT Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Header,4-Wall;CopperAlloy;200uin.60/40Tin/Lead;1;Beige;0.68in.;40 Pin header DIN 41651 40P, N3432-5002RB, 3M

¥15.3680
详情

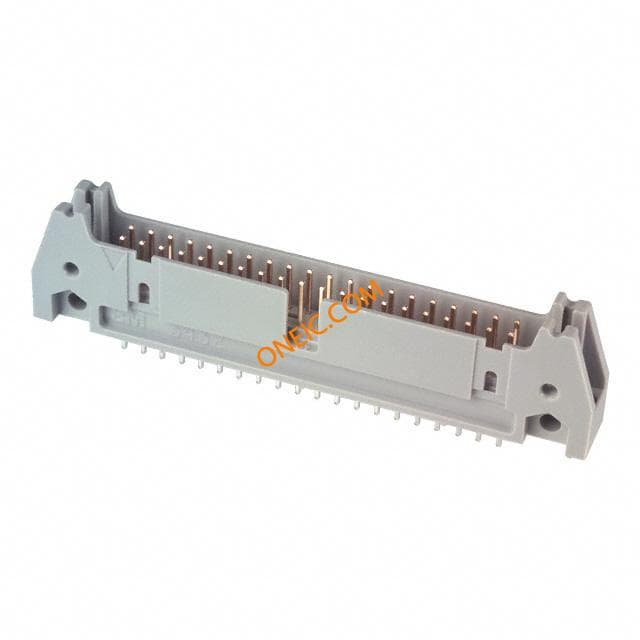

3432-6002

3432-6002

3M Electronic Solutions Division

Headers & Wire Housings 40P STRT SOLDER TAIL .100" × .100" Latch/Ejector, Straight and Right Angle PROTECT HEADER STRT 40 CONTACT WallHeader;CopperAlloy;Nickel(Underplate)2.76in.

¥23.0520
详情
暂无图片

3432-4305

3M

CONN HEADER 40POS STR LONG LATCH Conn Ejector Header HDR 40 POS 2.54mm Wire Wrap ST Thru-Hole

¥63.9880
详情

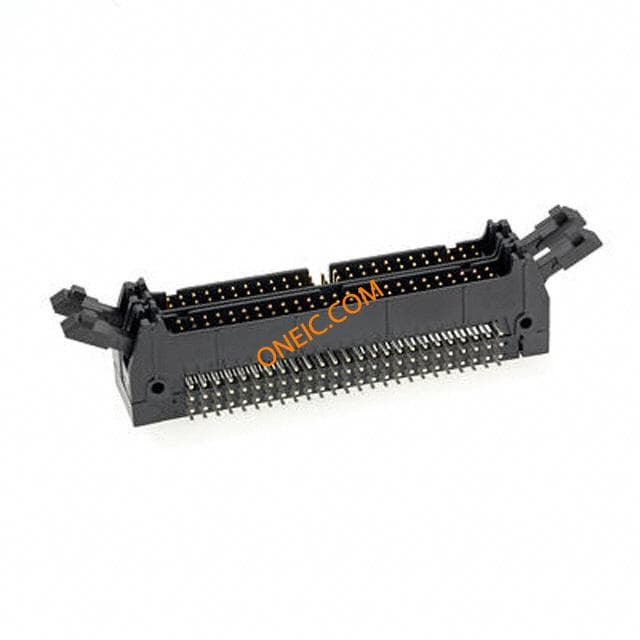

3432-L202UB
