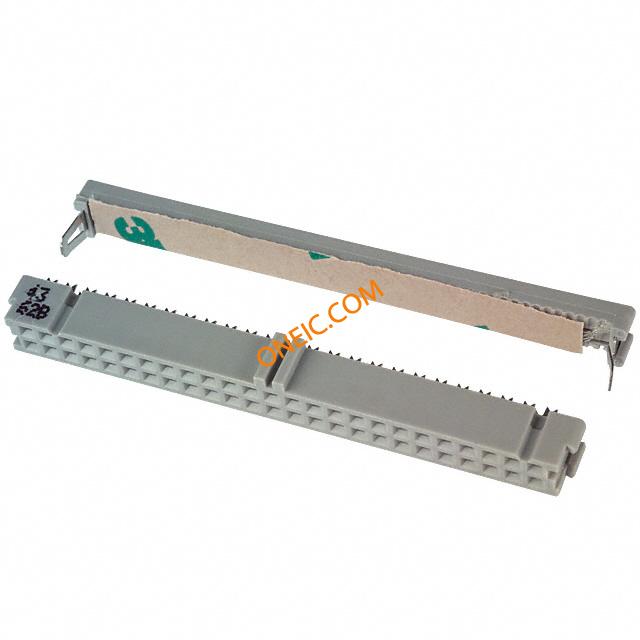

3417-6600
| 制造商 | 3M Company |
| 描述 | ヘッダ & ワイヤハウジング 40P IDC SOCKET .100" Ã .100" Wiremount for .050" Pitch Cable SOCK CONN 40 CONT OPEN W/POL GLD 40 way IDC bump polarised socket Headers & Wire Housings 40P IDC SOCKET Conn IDC Connector SKT 40 POS 2.54mm IDT RA Cable Mount SOCKET, IDC, 40WAY SOCKETCONNECTOR;40CONTACTS Multipole socket DIN 41651 40P, 3417-6600, 3M 3M 2行 40路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 40P SOCKET WITHOUT CENTER BUMP |
| 分类 |
商业参数
| 零件号别名 | 05400733643 80610120976 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 300 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :BT | RoHS合规（认证） | Yes |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 量程（°/s） | :3M - 3000 Series | 工作电压 | :350V |
| 接触电阻 | :20mohm | 最大额定电流 | 1A |
| 绝缘电阻 | :1000Mohm | 触点额定电流 | :1A |
机械参数
| 颜色 | Gray | 深度 | 7.6 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 10.4 mm |
| 重量 | 1.800 lbs | 材料（通用） | :Glass Filled Polyester (PBT) |
| 包装方式 | Bulk | 导线类型 | Ribbon Cable |
| 出线方向 | LowProfile | 导线线规 | 26-28 AWG, Stranded or Solid |
| 排间距 | 0.100" (2.54mm) | 端接方式 | IDT |
| 触头类型 | Female Socket | 引脚间距 | :2.54mm |
| 柱间距 | :2.54mm | 外壳颜色 | Gray |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Gold |
| 安装样式 | Cable | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | PBT |
| 总长度 | 55.4 mm | 主要材料 | Industrial |
| 电缆端接方式 | IDC | 插针孔直径 | 0.1" |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 连接器颜色 | :Grey | 触点数 | 40 |
| 接触件端接 | :IDC / IDT | 介电材料 | PBT |
| 位数 | 40 | 最大压力（PSI） | :1.6mm |
| 安装孔直径 | :0.89mm | 接触镀层厚度 | 30µin (0.76µm) |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | Ribbon Cable | 连接器性别 | Female |
| 系列 | 3000 | 已删除 | Compliant |
| 产品特性 | Feed Through, Polarizing Key | 极性 | :Bump |
| CAD图纸 | 3D CAD Model | 制造商全称 | 3000Series |
| 产品子类型 | Receptacles / Sockets - Housings | ||
环境参数
| 插拔次数 | :200 | 工作温度 | +105°C |
