点击放大查看

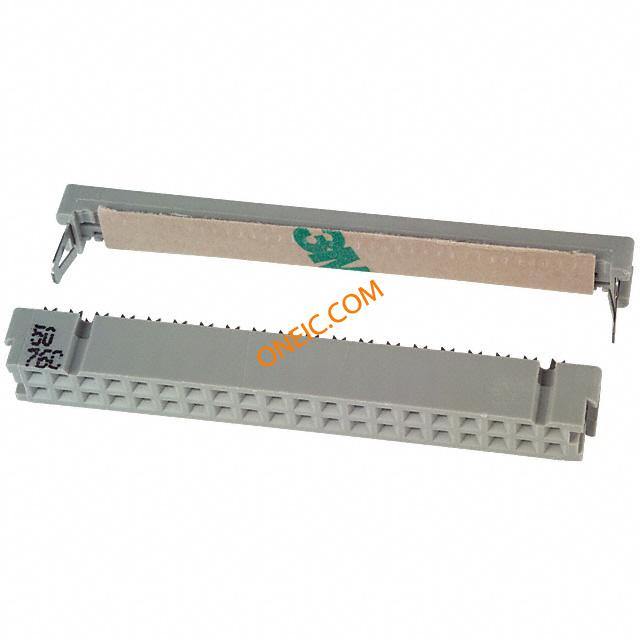

3417-6000
| 制造商 | 3M Company |
| 描述 | ヘッダ & ワイヤハウジング 40P IDC SOCKET .100" Ã .100" Wiremount for .050" Pitch Cable SOCKET CONN 40 CONTACT OPEN GOLD 40 way IDC polarised socket Headers & Wire Housings 40P IDC SOCKET Conn IDC Connector SKT 40 POS 2.54mm IDT RA Cable Mount WIRE-BOARD CONN, SOCKET, 40POS, 2.54MM SOCKET, IDC, 40WAY Socket;Wiremount;0.1Inch;for0.05InchPitchCable;40Cnts;3000Series 3M 2行 40路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 |
| 分类 |
商业参数
| 零件号别名 | 05400731581 80610079156 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 300 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| RoHS合规（认证） | Yes | ||
电气参数
| 量程（°/s） | :3M - 3000 Series | ||
机械参数
| 颜色 | Gray | 间距 | 0.100" (2.54mm) |
| 重量 | 1.800 lbs | 包装方式 | Bulk |
| 导线类型 | Ribbon Cable | 导线线规 | 26-28 AWG |
| 排间距 | 0.100" (2.54mm) | 端接方式 | IDT |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | Gold |
| 安装样式 | Cable | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | PBT |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 触点数 | 40 |
| 接触件端接 | :IDC / IDT | 位数 | 40 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Ribbon Cable | 连接器性别 | Female |
| 系列 | 3000 | 产品特性 | Feed Through |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
环境参数
| 工作温度 | +105°C | ||
