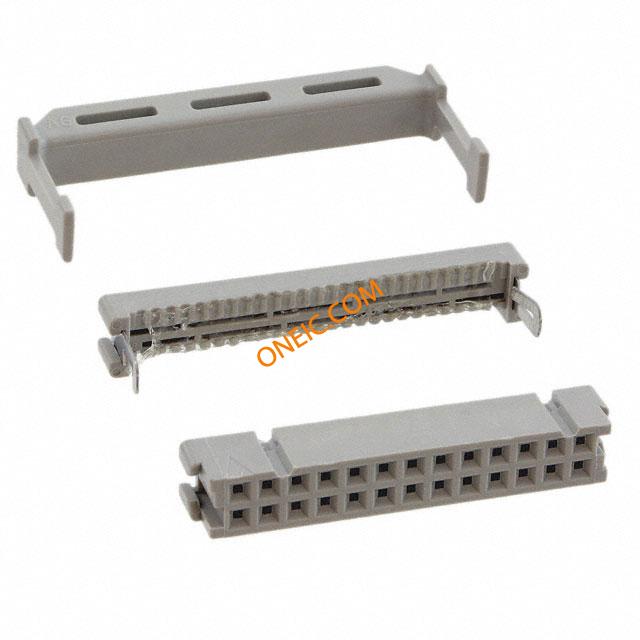

3399-6026

点击放大查看

3399-6026

制造商
3M Company
描述Headers & Wire Housings 26P IDC SOCKET .100" × .100" Wiremount for .050" Pitch Cable CONN SOCKET 26POS OPEN END GOLD Socket; Glass Filled Polyester; Copper Alloy; Nickel (Underplating; U Slot) Conn IDC Connector SKT 26 POS 2.54mm IDT RA Cable Mount Socket;GlassFilledPolyester;CopperAlloy;Nickel(Underplating,USlot)
分类
连接器解决方案压接与焊接端子/接头压接端子（通用）
对参数有疑问？问 AI 助手

商业参数

零件号别名05400731574 80610079081产品类别Headers & Wire Housings
标准包装数量300工厂包装数量100

合规参数

RoHSLead free / RoHS CompliantRoHS合规（认证）Yes

机械参数

颜色Gray间距0.100" (2.54mm)
重量1.500 lbs包装方式Bulk
导线类型Ribbon Cable导线线规26-28 AWG
排间距0.100" (2.54mm)触头类型Female Socket
安装类型Free Hanging (In-Line)连接器类型Receptacle
接触镀层Gold安装样式Cable
排数2电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
触点数26位数26
接触镀层厚度30µin (0.76µm)

产品信息

类型Ribbon Cable系列3000
产品特性Feed Through, Strain Relief产品子类型Receptacles / Sockets - Housings

文档与媒体

在线文档
3000 Series Wiremount Socket
