点击放大查看

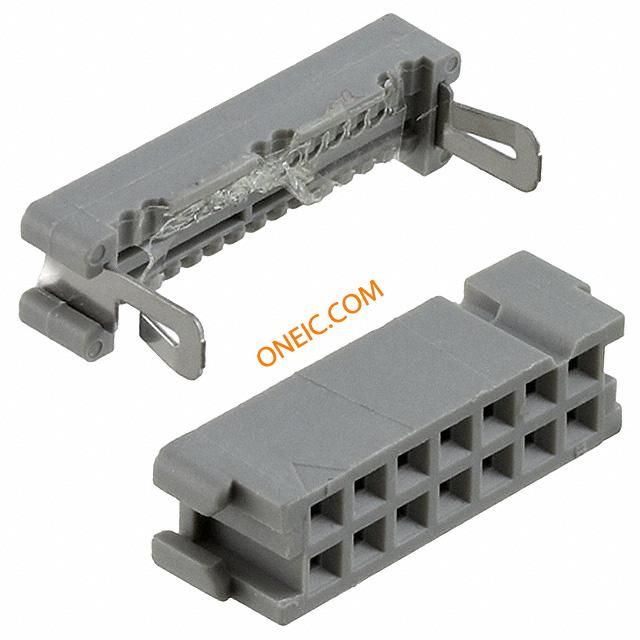

3385-7014
| 制造商 | 3M Company |
| 描述 | ヘッダ & ワイヤハウジング 14P IDC SOCKET CONN SOCKET 14POS CLOSE END GOLD Headers & Wire Housings 14P IDC SOCKET |
| 分类 |
商业参数
| 零件号别名 | 05400731564 80610078984 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 300 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 颜色 | Gray | 间距 | 0.100" (2.54mm) |
| 重量 | 1.200 lbs | 包装方式 | Bulk |
| 导线类型 | Ribbon Cable | 导线线规 | 26-28 AWG |
| 排间距 | 0.100" (2.54mm) | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 安装样式 | Cable |
| 排数 | 2 | 电缆端接方式 | IDC |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 触点数 | 14 | 位数 | 14 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Ribbon Cable | 系列 | 3000 |
| 产品特性 | Closed End, Strain Relief | 产品子类型 | Receptacles / Sockets - Housings |
