首页产品分类连接器解决方案压接与焊接端子/接头压接端子（通用）3385-6614

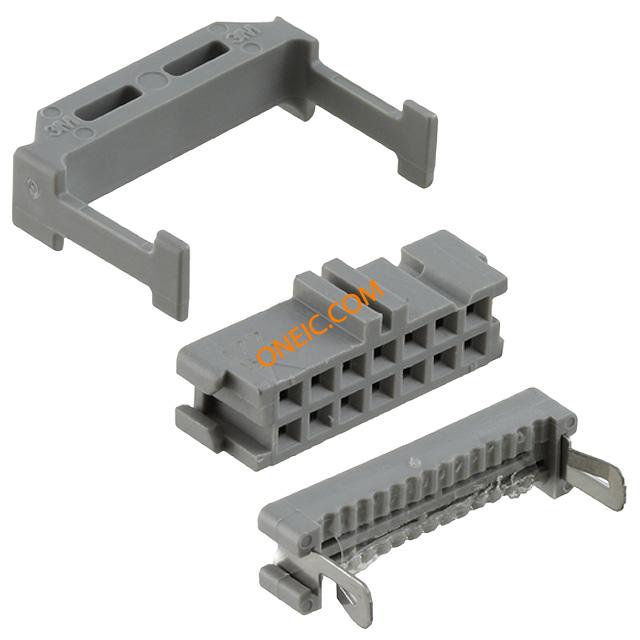

点击放大查看

3385-6614

制造商	3M Company
描述	ヘッダ & ワイヤハウジング 14P IDC SOCKET .100" Ã .100" Wiremount for .050" Pitch Cable CONN SOCKET 14POS OPEN END GOLD 14way bump polarised skt w/strain relief Headers & Wire Housings 14P IDC SOCKET SOCKET, IDC, 14WAY 3M(TM)WIREMOUNTSOCKET,3000SERIES,3385-6614 3M 2行 14路 2.54mm节距直角电缆安装母 IDC 连接器
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

零件号别名	05400733660 80610121149	产品类别	Headers & Wire Housings
标准包装数量	300	工厂包装数量	100

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85369010
认证机构	:BT	RoHS合规（认证）	Yes
材料阻燃等级	:UL94V-0

电气参数

量程（°/s）	:3M - 3000 Series	工作电压	:350V
接触电阻	:20mohm	最大额定电流	1A
绝缘电阻	:1000Mohm	触点额定电流	:1A

机械参数

颜色	Gray	间距	0.100" (2.54mm)
重量	1.100 lbs	材料（通用）	:Glass Filled Polyester (PBT)
包装方式	Bulk	导线类型	Ribbon Cable
导线线规	26-28 AWG	排间距	0.100" (2.54mm)
端接方式	IDT	触头类型	Female Socket
引脚间距	:2.54mm	柱间距	:2.54mm
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	Gold	安装样式	Cable
排数	2	触头材料	Copper Alloy
壳体材料	PBT	电缆端接方式	IDC
端接样式	IDC	第一触头极性	Socket (Female)
连接器颜色	:Grey	触点数	14
接触件端接	:IDC / IDT	位数	14
最大压力（PSI）	:1.6mm	安装孔直径	:0.89mm
接触镀层厚度	30µin (0.76µm)	第一连接器安装类型	:Cable

产品信息

类型	Ribbon Cable	连接器性别	Female
系列	3000	产品特性	Feed Through; Polarizing Key, Strain Relief
极性	:Bump	CAD图纸	3D CAD Model
产品子类型	Receptacles / Sockets - Housings

环境参数

插拔次数

:200

工作温度

+105°C

文档与媒体

压缩文件

3385-6614-01.x_t

在线文档

3000 Series Wiremount Socket

PDF 文档

66546.pdf
