点击放大查看

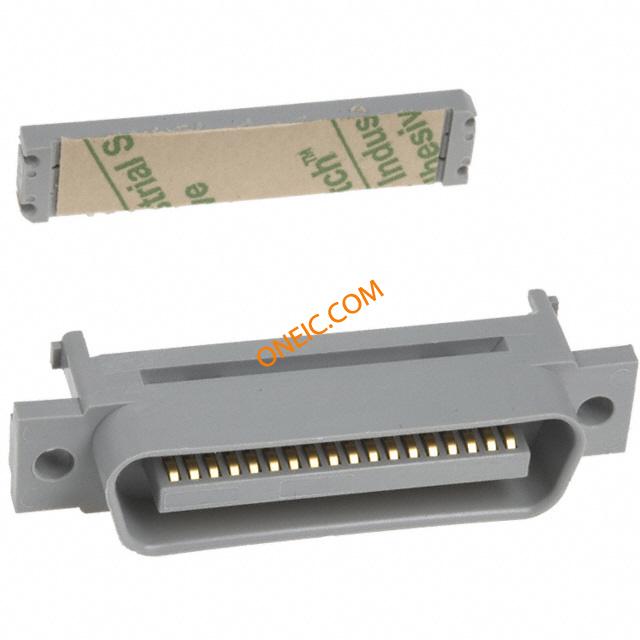

3366-1000
| 制造商 | |
| 描述 | D-Sub Standard Connectors 36P LOPRO WRMNT PLUG Molded Shell, Low profile plug DELTA CONN 36POS PLUG W/O INSERT D-Sub Connector; Plastic; Round Conductor Flat; 26 to 28 AWG; 0.05 in.; 36 Conn SCSI PL 36 POS 2.16mm IDT RA Cable Mount 36 Terminal 1 Port D-SubConnector;Plastic;RoundConductorFlat;26to28AWG;0.05in.;36 |
| 分类 |
商业参数
| 零件号别名 | 05400732859 80610098578 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 认证机构 | cUL,UL |
| RoHS合规（认证） | Yes | 材料阻燃等级 | UL94V-0 |
电气参数
| 最大额定电流 | 1 A | ||
机械参数
| 重量 | 5 lbs | 电缆类型 | RoundConductorFlat |
| 导线线规 | 28-26 | 端接方式 | IDC |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 导体类型 | 0.05 | 连接器类型 | Plug |
| 接触镀层 | Gold | 法兰特征 | Hollow, Unthreaded |
| 安装样式 | Wire | 排数 | 2 |
| 连接器样式 | Center Strip Contacts | 触头材料 | CopperAlloy |
| 壳体材料 | Plastic | 主要材料 | D-Ribbon |
| 触点数 | 36 | 介电材料 | PBT |
| 位数 | 36 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | CablePlug | 连接器性别 | Male |
| 制造商全称 | 3000 | 应用细节 | Commercial |
