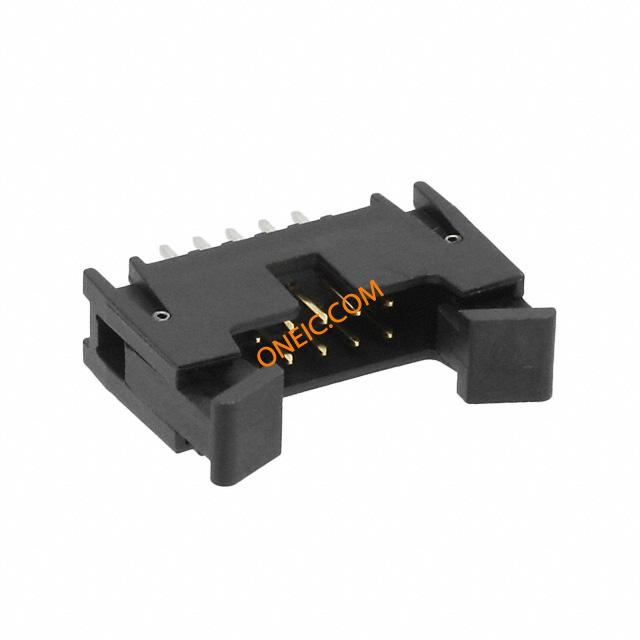

点击放大查看
155210-6202-RB
| 制造商 | |
| 描述 | Headers & Wire Housings 10P STRT MOLD LATCH .112 TAIL LENGTH 2 mm x 2 mm Straight & Right Angle Through-Hole, Straight Surfacemount CONN HEADER 2MM 10POS VERT .112" Latch/EjectHeader2mm(10position)Straight |
| 分类 |
商业参数
| 零件号别名 | 05111116909 80001123605 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | RoHS合规（认证） | Yes |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 最大额定电流 | 1 A | ||
机械参数
| 颜色 | Black | 间距 | 2 mm |
| 包装方式 | Tray | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚长度（针脚） | 0.112" | 安装类型 | Straight |
| 行程角度 | Straight | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 紧固类型 | Latch Lock/Eject Hooks |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | GlassFilledPolyester |
| 总长度 | 0.831" | 插针孔直径 | 0.079" |
| 端接样式 | Solder Pin | 触点数 | 10 |
| 位数 | 10 | 接触长度 - 配合 | 0.150" (3.81mm) |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | CableSocket | 系列 | 1552 |
| 产品特性 | EjectLatch | 制造商全称 | 1552Series |
| 产品子类型 | Headers - Latch / Eject | 加载位置数 | All |
环境参数
| 工作温度 | -55to+105°C | ||
