点击放大查看

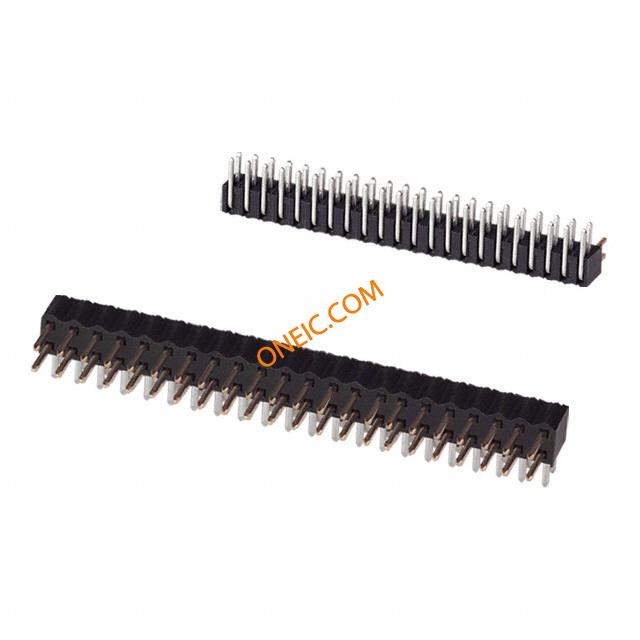

151244-7422-TB

制造商	3M Company
描述	ヘッダ & ワイヤハウジング 44P R/A SOLDER TAIL 2 mm Ã 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 44POS2MM HEADER RT/DUAL GLD Header;Pak20PinStrip;CopperAlloy;GlassFilledPolyester;44;1.5A
分类	集成电路逻辑IC标准逻辑IC

对参数有疑问？问 AI 助手

商业参数

标准包装数量

270

合规参数

RoHS	Contains lead / RoHS non-compliant	标准	ULListed
认证机构	cUL,UL	RoHS合规（认证）	No
材料阻燃等级	UL94V-0

电气参数

额定电压值	500VDC	最大额定电流	1.5A
绝缘电阻	5x10^9Ohms(Max.)@250VDC

机械参数

颜色	Black	间距	0.079" (2.00mm)
镀层	Gold-MIL-G-45204,TypeII,GradeC	包装方式	Bulk
排间距	0.079" (2.00mm)	端接方式	Solder
触头类型	Male Pin	引脚长度（针脚）	0.152"
安装类型	Through Hole, Right Angle	行程角度	Right
连接器类型	Header, Unshrouded	接触镀层	Gold
排数	2	端子样式	RightAngleSolderTail
触头材料	CopperAlloy	壳体材料	GlassFilledPolyester
总长度	1.732"	主要材料	InterconnectSystem
尺寸/外形	1.714in.+0.005in.,-0.010in.Lx0.155in.Wx0.059in.H	插针孔直径	0.0787"
触点数	44	位数	44
绝缘材料 - 材质	GlassFilledPolyester	接触长度 - 配合	0.152" (3.86mm)
接触镀层厚度	30µin (0.76µm)

产品信息

类型	PCBPlug	制造商全称	1512Series
加载位置数	All

环境参数

工作温度

-55to+105°C

结工作温度

105°C

文档与媒体

PDF 文档

1512 Series
