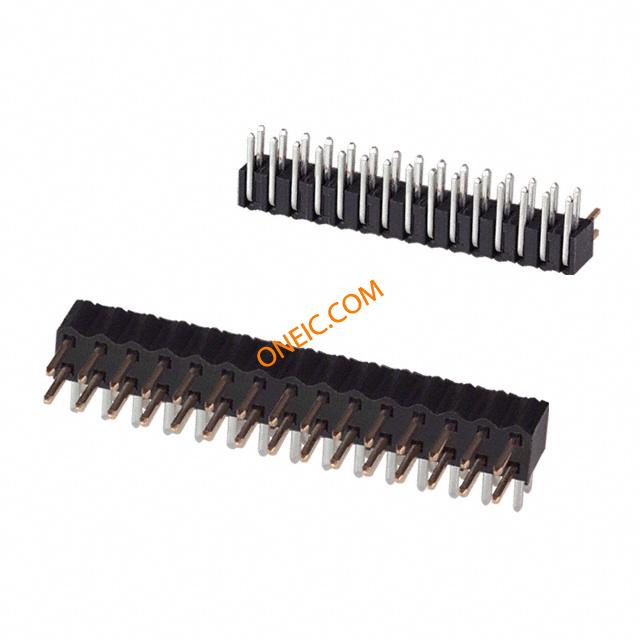

151230-7422-TB
| 制造商 | |
| 描述 | Headers & Wire Housings 30P R/A SOLDER TAIL Conn Unshrouded Header HDR 30 POS 2mm Solder RA Thru-Hole 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 30POS2MM HEADER RT/DUAL GLD Header;Pak20PinStrip;CopperAlloy;GlassFilledPolyester;30;1.5A |
| 分类 |
商业参数
| 标准包装数量 | 500 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 标准 | ULListed |
| 认证机构 | cUL,UL | RoHS合规（认证） | No |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 额定电压值 | 500VDC | 最大额定电流 | 1.5A |
| 绝缘电阻 | 5x10^9Ohms(Max.)@250VDC | ||
机械参数
| 颜色 | Black | 深度 | 7.85 |
| 间距 | 0.079" (2.00mm) | 高度 | 4.19 |
| 镀层 | Gold-MIL-G-45204,TypeII,GradeC | 包装方式 | Bulk |
| 排间距 | 0.079" (2.00mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚长度（针脚） | 0.152" |
| 外壳颜色 | Black | 安装类型 | Right Angle |
| 行程角度 | Right | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 端子样式 | RightAngleSolderTail | 触头材料 | Copper Alloy |
| 壳体材料 | Polychlorinated Terphenyl|Liquid ... | 总长度 | 1.181" |
| 主要材料 | InterconnectSystem | 尺寸/外形 | 1.162in.+0.005in.,-0.010in.Lx0.155in.Wx0.059in.H |
| 插针孔直径 | 0.0787" | 触点数 | 30 |
| 位数 | 30 | 绝缘材料 - 材质 | GlassFilledPolyester |
| 接触长度 - 配合 | 0.152" (3.86mm) | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 制造商全称 | 1512Series | 加载位置数 | All |
环境参数
| 工作温度 | -55to+105°C | 结工作温度 | 105°C |
