点击放大查看

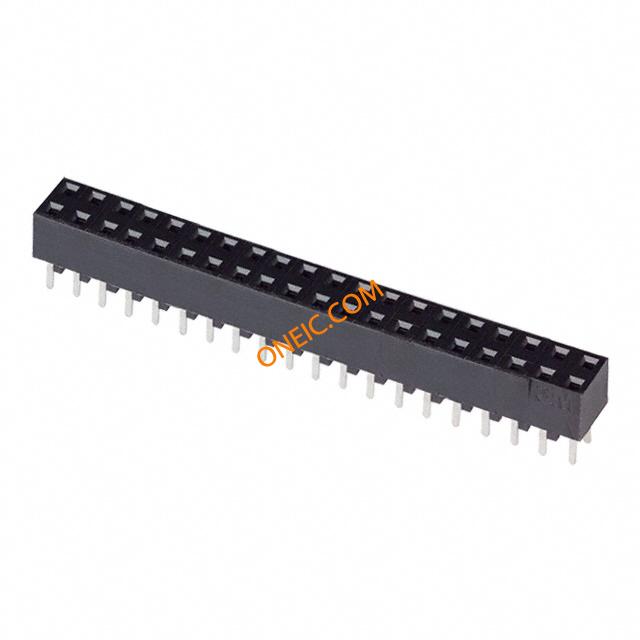

150240-6002-RB
| 制造商 | |
| 描述 | Headers & Wire Housings 40P STRT SOCKET 2 mm x 2 mm Str. Surfacemount, Str. and R. A. Plated Through-Hole CONN 40POS 2MM SOCKET VERT PC MT BoardmountSocket,2mmx2mm,40pos,2.54mmsoldertail, 3M 1502 系列 2行 40路 直 2mm节距 通孔 印刷电路板插座, 板安装 |
| 分类 |
商业参数
| 零件号别名 | 05111165675 80000900714 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 84 | 工厂包装数量 | 84 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 150 V 交流 | 最大额定电流 | 1 A |
机械参数
| 颜色 | Black | 间距 | 0.079" (2.00mm) |
| 包装方式 | Tray | 方向 | 直 |
| 排间距 | 0.079" (2.00mm) | 端接方式 | Solder |
| 触头类型 | Female Socket | 安装类型 | Through Hole |
| 连接器类型 | Receptacle | 接触镀层 | Gold |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 端接排数 | 焊接 | 端接样式 | Through Hole |
| 触点数 | 40 | 位数 | 40 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | 板安装 | 系列 | 1502 |
| 产品子类型 | Receptacles / Sockets - PCB | 基础产品编号 | 150240 |
| 加载位置数 | All | ||
