点击放大查看

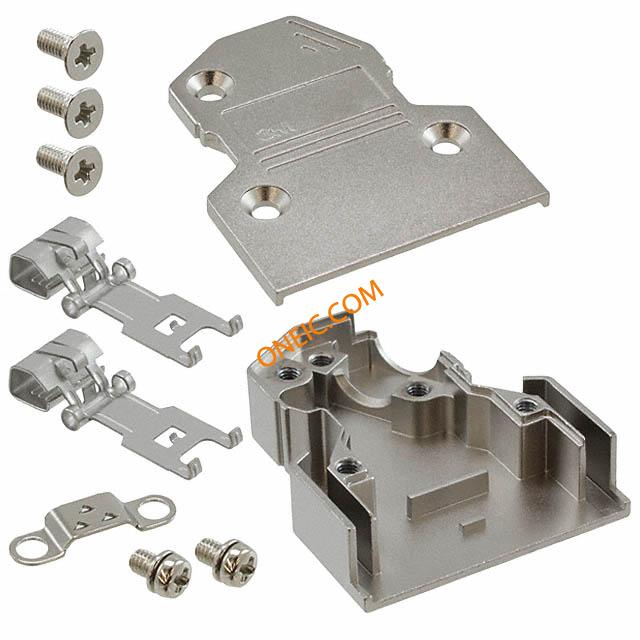

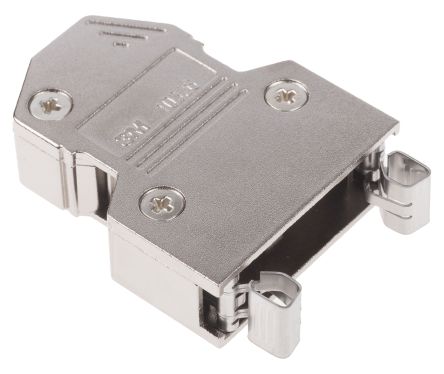

10326-C500-00
| 制造商 | |
| 描述 | D-Sub Backshells 20P JUNCTION SHELL 60 DEGREE EXIT Zn CONN BACKSHELL 26POS 60DEG SHLD Shielded round cable shell 26 pin zinc D-Sub Backshells 26P JUNCTION SHELL 60 DEGREE EXIT Zn 3M 103 系列 26 路 直 天然色 锌合金 底壳 , 带应力消除 |
| 分类 |
商业参数
| 零件号别名 | 54862335588 JE150407565 | 标准包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Silver | 镀层 | Nickel |
| 材料（通用） | Zinc Alloy | 屏蔽 | Shielded |
| 出线方向 | 60° | 电缆类型 | Round |
| 方向 | 直 | 安装类型 | Straight |
| 外壳镀层 | Nickel | 电缆直径 | 12 mm |
| 电缆端类型 | Side Entry | 外壳材料（壳体） | Zinc Alloy |
| 壳体材料 | Zinc Alloy | 连接器颜色 | Natural |
| 触点数 | 26 | 位数 | 26 |
| 电缆对数 | 1 | 静电放电屏蔽 | 是 |
产品信息
| 类型 | EMI/RFI Shielded Backshell | 系列 | 103 |
| 产品特性 | Latch Lock | 硬件配件 | Assembly Hardware, Cable Clamp |
| 附件类型 | Two Piece Backshell | ||
环境参数
| 机械寿命 | New At Mouser | ||
