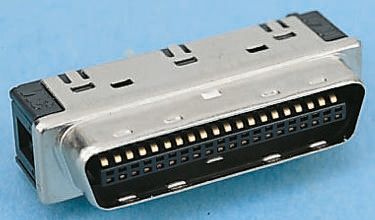

点击放大查看

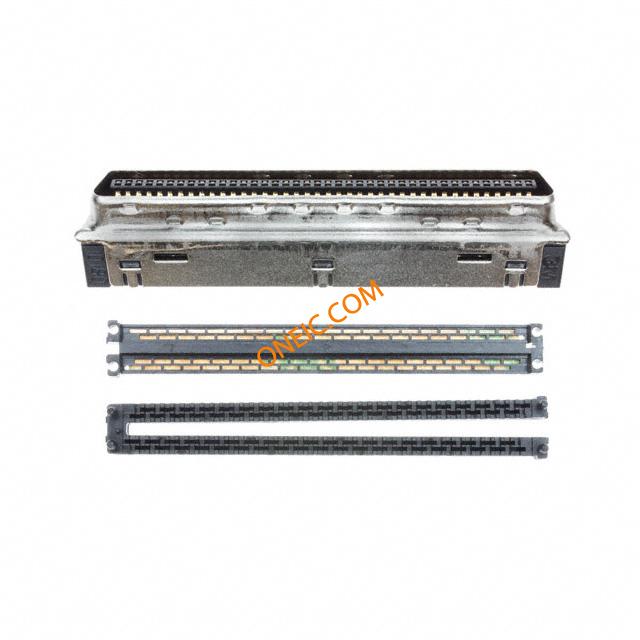

10180-6000EC
| 制造商 | |
| 描述 | D-Sub Micro-D Connectors 80P PLUG SHIELDED IDC WIREMOUNT Wiremount Plug, IDC, Shielded CONN MDR PLUG 80POS IDC GOLD Plug MDR IDC shielded 80 pin 3M 101 系列 1.27mm 节距 80 路 IDC Mini-D 带状电缆连接器, 插头, 钢外壳 |
| 分类 |
商业参数
| 零件号别名 | 90169008645 JE150174918 | 产品类别 | D-Sub Micro-D Connectors |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | RoHS合规（认证） | Yes |
电气参数
| 最大额定电流 | 1 A | ||
机械参数
| 深度 | 9.1mm | 间距 | 1.27mm |
| 宽度 | 12.7mm | 长度 | 60.1mm |
| 重量 | 1 lb | 包装方式 | Bulk |
| 方向 | 直 | 端接方式 | IDC |
| 安装类型 | Straight | 外壳镀层 | Nickel |
| 连接器类型 | Plug | 接触镀层 | Gold |
| 安装样式 | Wire | 排数 | 2 |
| 连接器样式 | Center Strip Contacts | 触头材料 | Beryllium Copper |
| 壳体材料 | 钢 | 尺寸/外形 | 60.1 x 12.7 x 9.1mm |
| 端接样式 | IDC | 触点数 | 80 |
| 位数 | 80 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 连接器性别 | Male | 系列 | 101 |
| 产品特性 | Shielded | ||
环境参数
| 工作温度 | +85°C | ||
