Siemens

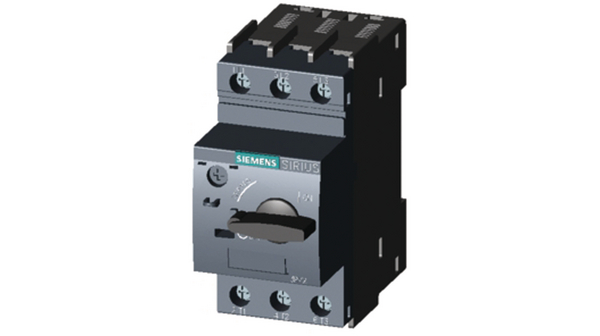

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Brand/Series | 3RV2Series |
| Horsepower,Max,1Phase,at115V | 0.5 |
| Horsepower,Max,1Phase,at208V | 1.5 |
| Horsepower,Max,1Phase,at230V | 2 |
| Horsepower,Max,3Phase,at208V | 3 |
| Horsepower,Max,3Phase,at230V | 3 |
| Horsepower,Max,3Phase,at460V | 7.5 |
| Horsepower,Max,3Phase,at575V | 10 |
| PrimaryType | MotorProtector |
| Temperature compensation | Ja |
| Overload release | 9...12.5 A |
| Dimensions W x H x D | 45 x 97 x 91 mm |
| Utilisation category | AC 3 |
| Tripping class | Class 10 TO IEC 60947-4-1 |
| Operating temperature | -20...+60 °C |
| Phase failure sensitivity | Yes |
| Breaking capacity | 100 kA |
| Rated operating voltage | 690 VAC |
| Rated frequency | 50...60 Hz |
| Protection rating | IP 20 |
