Cynergy 3

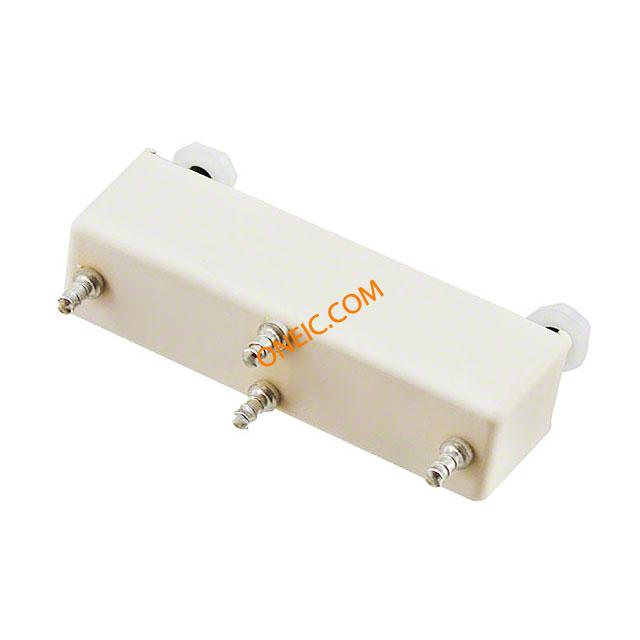

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 线圈电流 | 178.57mA |
| 线圈电压 | 5VDC |
| 开启电压（最大值） | 3.7 VDC |
| 线圈类型 | Non Latching |
| 关闭电压（最小值） | 0.5 VDC |
| 触点形式 | SPST-NO (1 Form A) |
| 继电器类型 | Reed |
| 端接类型 | Solder Turret |
| 切换电压 | 7000VAC, 7000VDC - Max |
| 释放时间 | 2ms |
| 封装 | Tray |
| 工作温度 | -20°C ~ 70°C |
| 操作时间 | 3ms |
| 触点额定值（电流） | 2A |
| 标准包装 | 20 |
| 安装类型 | Chassis Mount |
| 触点材料 | Tungsten (W) |
| 其他名称 | DAT70510P-ND |
| 线圈电阻 | 28 Ohms |
| RoHS指令 | RoHS Compliant Part |
| Lifetime (Dry Switching) | 10^9 operations |
| Must Operate (DC @ 20C) | 3.7 V |
| Max Switching Power | 50W |
| Release Time Diode Fitted | 3.0ms |
| MainCategory | Relays |
| 安装 | Base Mount |
| Operate Time Diode Fitted | 2.0ms |
| Must Release (DC @ 20C) | 0.5 V |
| SubCategory | Reed Relay |
| Insulation Resistance Contact to All Other Terminals (Minimum (Typical)) | 10^10 ohms (10^13 ohns) |
| 工作温度范围 | -20C to +70C |
| Contact Resistance (Maximum (Typical)) | 250 ohms (100 ohms) |
| 开关电流 | 2 Amps |
| 联系配置 | 1A SPST-NO |
| Isolation Contact to Coil to All Other Terminals (DC or AC peak) | 17 kv |
| Max Carry CurrentDC or AC rms (60Hz) | 3 A |
| Lifetime (50W Switching) | 10^6 operations |
| Isolation Across Contacts (DC or AC peak) | 10 kv |
| 电阻 | 38 ohm |
| 触点类型 | Tungsten |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
