Siemens

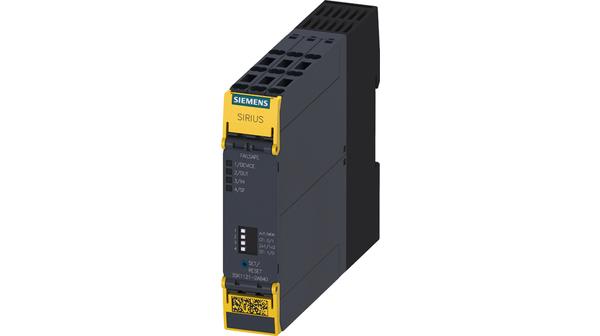

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 触点额定电流 | 1 (dc) A, 1.5 (ac) A, 4 (ac) A, 5 (dc) A |
| 触点额定电压 | 230 V ac, 24 V dc |
| 控制电压 | 24 V dc |
| 深度 | 121.7mm |
| 外形尺寸 | 100 x 22.5 x 121.7 mm |
| 长度 | 100mm |
| 最高工作温度 | +60°C |
| 最低工作温度 | -25°C |
| 安装风格 | DIN Rail Mount |
| 正常状态配置 | 3NO/NC |
| 通道数 | 1 |
| 复位方法 | Automatic, Monitored |
| 安全等级 | Category 0 |
| 安全联系人 | 3NO/NC |
| 电源电压 | 24 V dc |
| 终端类型 | Spring |
| 宽度 | 22.5mm |
| Assembly type | Top hat rail mounting |
| Termination type | Spring Clamp Terminals |
| Service life, mechanical | 10 Mil. cycles |
| Dimensions W x H x D | 22.5 x 100 x 121.6 mm |
| Protection rating (housing) | IP 20 |
| Service life, electric | 0.25 Mil. cycles |
| Output contact without delay | 3 make contacts (NO) |
| Auxiliary contacts | 1 break contact (NC) |
| Operating temperature | -25...+60 °C |
| 设计 | Base unit, advanced |
| Operating voltage | 24 VDC |
| 响应时间 | 0.11 |
