Siemens

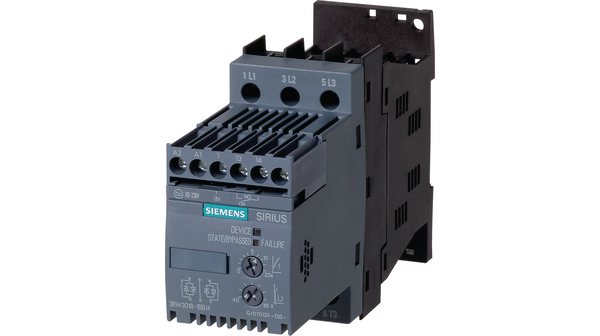

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 控制电压 | 24 V ac/dc |
| 额定电流 | 6.5 A |
| IP等级 | IP20 |
| 整体深度 | 95mm |
| 总长 | 151mm |
| 总宽 | 45mm |
| 第一阶段 | 3 |
| 额定功率 | 3 kW |
| 额定电压 | 400 V |
| Leads | screw terminals |
| Max motor power | 3kW |
| 额定电流 | 6.5A |
| Multiplicity | 1 |
| Control voltage | 24V AC, 24V DC |
| Module type | soft-start |
| Contactor series | S00 |
| Gross weight | 0.58 kg |
| Operating temperature | -25...60°C |
| Additional functions | starting current limiter |
| 电源电压 | 200...480V AC |
| 安装 | DIN |
| Starting/stopping time | 0...20/0...20s |
| Dimensions W x H x D | 45 x 100 x 150 mm |
| Rated output | 3 kW@ 400 VAC |
| Start time | 0...20 s |
| Operating voltage | 200...480 VAC |
| Start voltage | 40...100 % |
