Siemens

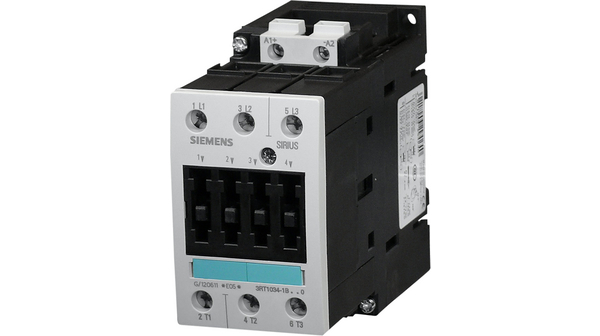

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| CAD绘图 | 3D CAD Model |
| 线圈电压 | 24 V dc |
| 触点额定电流 | 12 A |
| 触点额定电压 | 400 V ac |
| 深度 | 73mm |
| 长度 | 60mm |
| 最高工作温度 | +60°C |
| 最低工作温度 | -25°C |
| 安装风格 | DIN Rail Mount |
| 正常状态配置 | 3NO |
| 辅助触点数量 | 1 |
| 极数 | 3 |
| 极和掷配置 | 3P |
| 终端类型 | Cage Clamp |
| 宽度 | 45mm |
| Switching power | 5.5 |
| Termination type | CAGE CLAMP Connection |
| Service life, mechanical | approx. 10 x 106 switching cycles (AC-operation) |
| 联系方式 | 3 NO |
| Dimensions W x H x D | 45 x 57.5 x 72 mm |
| 线圈电压 | 24 VAC |
| Switching current AC-3 | 12 A@ 400 V |
| Service life, electric | approx. 1.3 mil. switching cycles |
| Rated insulation voltage | 690 |
| Auxiliary contacts | 1 make contact (NO) |
| Operating temperature | -25...+60 °C |
| Switching capacity AC-3 | 5.5 kW@ 400 V |
| Rated operating voltage | 690 VAC |
| Rated operating capacity | 5.5 kW AC3 |
| 尺寸 | S00 |
