Siemens

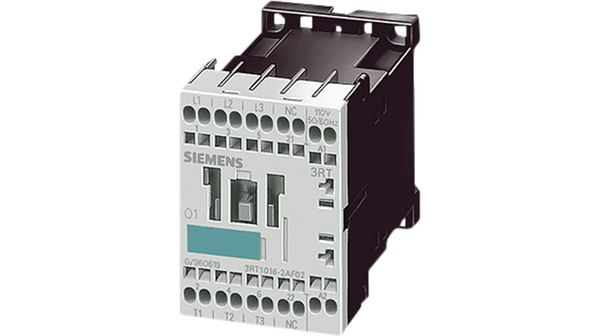

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| CAD绘图 | 3D CAD Model |
| 线圈电压 | 24 V dc |
| 触点额定电流 | 7 A |
| 触点额定电压 | 400 V ac |
| 深度 | 73mm |
| 长度 | 60mm |
| 最高工作温度 | +60°C |
| 最低工作温度 | -25°C |
| 安装风格 | DIN Rail Mount |
| 正常状态配置 | 3NO |
| 辅助触点数量 | 1 |
| 极数 | 3 |
| 极和掷配置 | 3P |
| 额定功率 | 3 kW |
| 终端类型 | Cage Clamp |
| 宽度 | 45mm |
| 工作电压 | :24VDC |
| Switching Power AC3 | :3kW |
| Switching Current AC1 | :18A |
| Switching Current AC3 | :7A |
| No. of Poles | :3 |
| 联系配置 | :SPNO |
| Contactor Direction | :(Not Available) |
| Relay Mounting | :DIN Rail |
| Coil Voltage VDC Nom | :24V |
| SVHC | :No SVHC (19-Dec-2012) |
| AC Coil Power | :3.3W |
| 线圈类型 | :DC |
| Contact Voltage AC Max | :400V |
| Contact Voltage AC Nom | :460V |
| DC Coil Power | :26.5VA |
| 外部深度 | :109mm |
| External Length / Height | :60mm |
| 外宽 | :45mm |
| IP / NEMA Rating | :IP20 |
| 机械寿命 | :300,000,000 Operations |
| 安装类型 | :DIN Rail, Panel |
| No. of Mechanical Operations | :300000000 |
| Operating Temperature Max | :60°C |
| Operating Temperature Min | :-25°C |
| 继电器类型 | :Contactor |
| 系列 | :3RT10 |
| Switch Power Max | :3kW |
| Weight (kg) | 0.26 |
| Tariff No. | 85364900 |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
