Schneider Electric

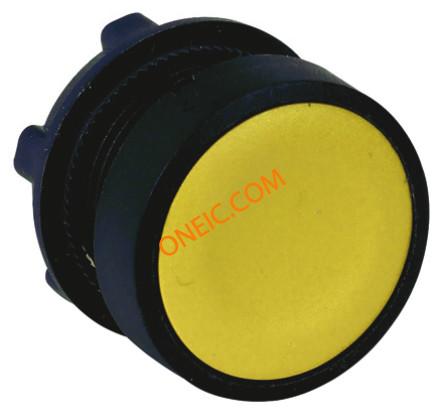

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 按钮颜色 | Yellow |
| 头类型 | Round |
| IP等级 | IP66 |
| 最高工作温度 | +70°C |
| 最低工作温度 | -25°C |
| 安装类型 | Panel |
| 面板开孔直径 | 22mm |
| 按钮触动 | Push Push |
| 材质 | Nylon |
| 体形状 | Round |
| 开关功能 | ON - OFF |
| 帽颜色 | Black |
| product certifications | BVCSADNVGLLROS (Lloyds register of shipping)RINAUL listed |
| vibration resistance | 5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6 |
| mounting diameter | 22 mm |
| product weight | 0.018 kg |
| shape of signaling unit head | Round |
| device short name | ZB5 |
| resistance to high pressure washer | 7000000 Pa at 55 °C,distance: 0.1 m |
| product or component type | Head for non-illuminated pushbutton |
| CAD overall height | 29 mm |
| bezel material | Plastic |
| protective treatment | TH |
| range of product | Harmony XB5 |
| sale per indivisible quantity | 1 |
| CAD overall width | 29 mm |
| ambient air temperature for operation | -25...70 °C |
| mechanical durability | 500000 cycles |
| station name | XALD 1...5 cut-outsXALK 2...5 cut-outs |
| shock resistance | 30 gn for 18 ms half sine wave acceleration conforming to IEC 60068-2-2750 gn for 11 ms half sine wave acceleration conforming to IEC 60068-2-27 |
| NEMA degree of protection | NEMA 13NEMA 4X |
| IP degree of protection | IP66 conforming to IEC 60529 |
| type of operator | Push-push |
| IK degree of protection | IK03 conforming to IEC 50102 |
| electrical composition code | C11 for <= 3 contacts using single blocks in front mountingC15 for 1 contacts using single blocks in front mountingSF1 for <= 3 contacts using single blocks in front mountingSR1 for <= 3 contacts using single blocks in rear mountingC9 for <= 3 contacts using single blocks in front mounting |
| operator profile | Yellow flush unmarked |
| standards | CSA C22-2 No 14EN/IEC 60947-1EN/IEC 60947-5-1EN/IEC 60947-5-4JIS C 4520UL 508 |
| CAD overall depth | 28 mm |
| ambient air temperature for storage | -40...70 °C |
| class of protection against electric shock | Class II conforming to IEC 60536 |
| 按钮执行 | 闭锁 |
| 按钮类型 | 圆形 |
| IP 防护等级 | IP66 |
| 按钮形状 | 圆形 |
| 切面直径 | 22mm |
| 系列 | XB5 |
| 按钮颜色 | 黄色 |
