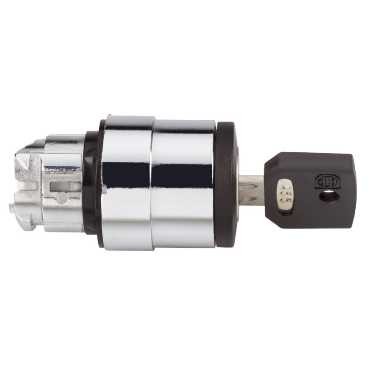

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 工业别名 | 785901901570 |
| 子类别 | Not Specified |
| 交货期 | 14 Days |
| product certifications | BVCSADNVGLLROS (Lloyds register of shipping)RINAUL listed |
| vibration resistance | 5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6 |
| mounting diameter | 22 mm |
| product weight | 0.098 kg |
| shape of signaling unit head | Round |
| key withdrawal position | Left |
| device short name | ZB4 |
| resistance to high pressure washer | 7000000 Pa at 55 °C,distance: 0.1 m |
| product or component type | Head for key selector switch |
| CAD overall height | 29 mm |
| type of keylock | Ronis 458A |
| bezel material | Chromium plated metal |
| protective treatment | TH |
| operator position information | 2 positions 90 ° |
| range of product | Harmony XB4 |
| sale per indivisible quantity | 1 |
| CAD overall width | 29 mm |
| ambient air temperature for operation | -25...70 °C |
| mechanical durability | 1000000 cycles |
| shock resistance | 30 gn for 18 ms half sine wave acceleration conforming to IEC 60068-2-2750 gn for 11 ms half sine wave acceleration conforming to IEC 60068-2-27 |
| NEMA degree of protection | NEMA 13NEMA 4X |
| IP degree of protection | IP69K conforming to IEC 60529 |
| type of operator | Stay put |
| IK degree of protection | IK06 conforming to IEC 50102 |
| electrical composition code | C11 for <= 3 contacts using single blocks in front mountingC15 for 1 contacts using single blocks in front mountingC3 for <= 6 contacts using single blocks in front mountingC4 for <= 6 contacts using single and double blocks in front mountingC7 for <= 4 contacts using single blocks in front mountingC8 for <= 4 contacts using single and double blocks in front mountingC5 for <= 5 contacts using single blocks in front mountingC6 for <= 5 contacts using single and double blocks in front mounting |
| operator profile | Black key switch |
| standards | CSA C22-2 No 14EN/IEC 60947-1EN/IEC 60947-5-1EN/IEC 60947-5-4EN/IEC 60947-5-5UL 508GB 14048.5 |
| CAD overall depth | 72 mm |
| ambient air temperature for storage | -40...70 °C |
| class of protection against electric shock | Class I conforming to IEC 60536 |
