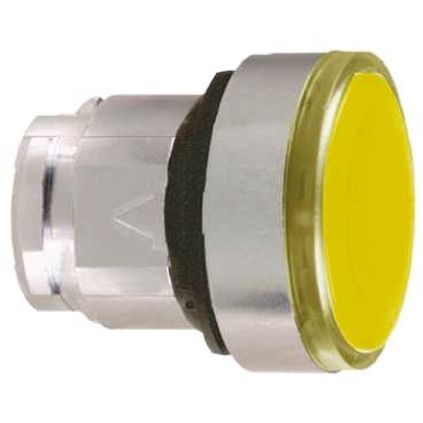

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 按钮颜色 | Yellow |
| 头类型 | Round |
| IP等级 | IP66 |
| LED包括 | Yes |
| 最高工作温度 | +70°C |
| 最低工作温度 | -40°C |
| 安装类型 | Panel |
| 面板开孔直径 | 22mm |
| 按钮触动 | Spring Return |
| product certifications | BVCSADNVGLLROS (Lloyds register of shipping)RINAUL listed |
| vibration resistance | 5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6 |
| mounting diameter | 22 mm |
| product weight | 0.028 kg |
| operator additional information | For insertion of legend |
| shape of signaling unit head | Round |
| device short name | ZB4 |
| resistance to high pressure washer | 7000000 Pa at 55 °C,distance: 0.1 m |
| product or component type | Head for illuminated pushbutton |
| CAD overall height | 29 mm |
| bezel material | Chromium plated metal |
| protective treatment | TH |
| range of product | Harmony XB4 |
| sale per indivisible quantity | 1 |
| CAD overall width | 29 mm |
| ambient air temperature for operation | -25...70 °C |
| mechanical durability | 5000000 cycles |
| shock resistance | 30 gn for 18 ms half sine wave acceleration conforming to IEC 60068-2-2750 gn for 11 ms half sine wave acceleration conforming to IEC 60068-2-27 |
| NEMA degree of protection | NEMA 13NEMA 4X |
| IP degree of protection | IP66 conforming to IEC 60529 |
| type of operator | Spring return |
| IK degree of protection | IK05 conforming to EN 50102 |
| electrical composition code | C3 for <= 6 contacts using single blocks in front mountingC4 for <= 6 contacts using single and double blocks in front mountingC14 for <= 2 contacts using single blocks in front mountingM1 for <= 6 contacts using single blocks in front mounting with integral LEDM2 for <= 6 contacts using single and double blocks in front mounting with integral LEDM10 for <= 2 contacts using single blocks in front mounting with integral LEDM6 for <= 2 contacts using single blocks in front mounting with integral LED and transformer |
| product compatibility | Integral LED |
| operator profile | Orange flush unmarked |
| standards | CSA C22-2 No 14EN/IEC 60947-1EN/IEC 60947-5-1EN/IEC 60947-5-4EN/IEC 60947-5-5JIS C 4520UL 508 |
| CAD overall depth | 30 mm |
| ambient air temperature for storage | -40...70 °C |
| class of protection against electric shock | Class I conforming to IEC 60536 |
| 按钮执行 | 弹簧复位 |
| 按钮类型 | 圆形 |
| IP 防护等级 | IP66 |
| 按钮形状 | 圆形 |
| 切面直径 | 22mm |
| 系列 | XB4 |
| 按钮颜色 | 黄色 |
